TL3000
TALFRI
0.40-0.55
340
315
| Quantity: | |
|---|---|
Overview:

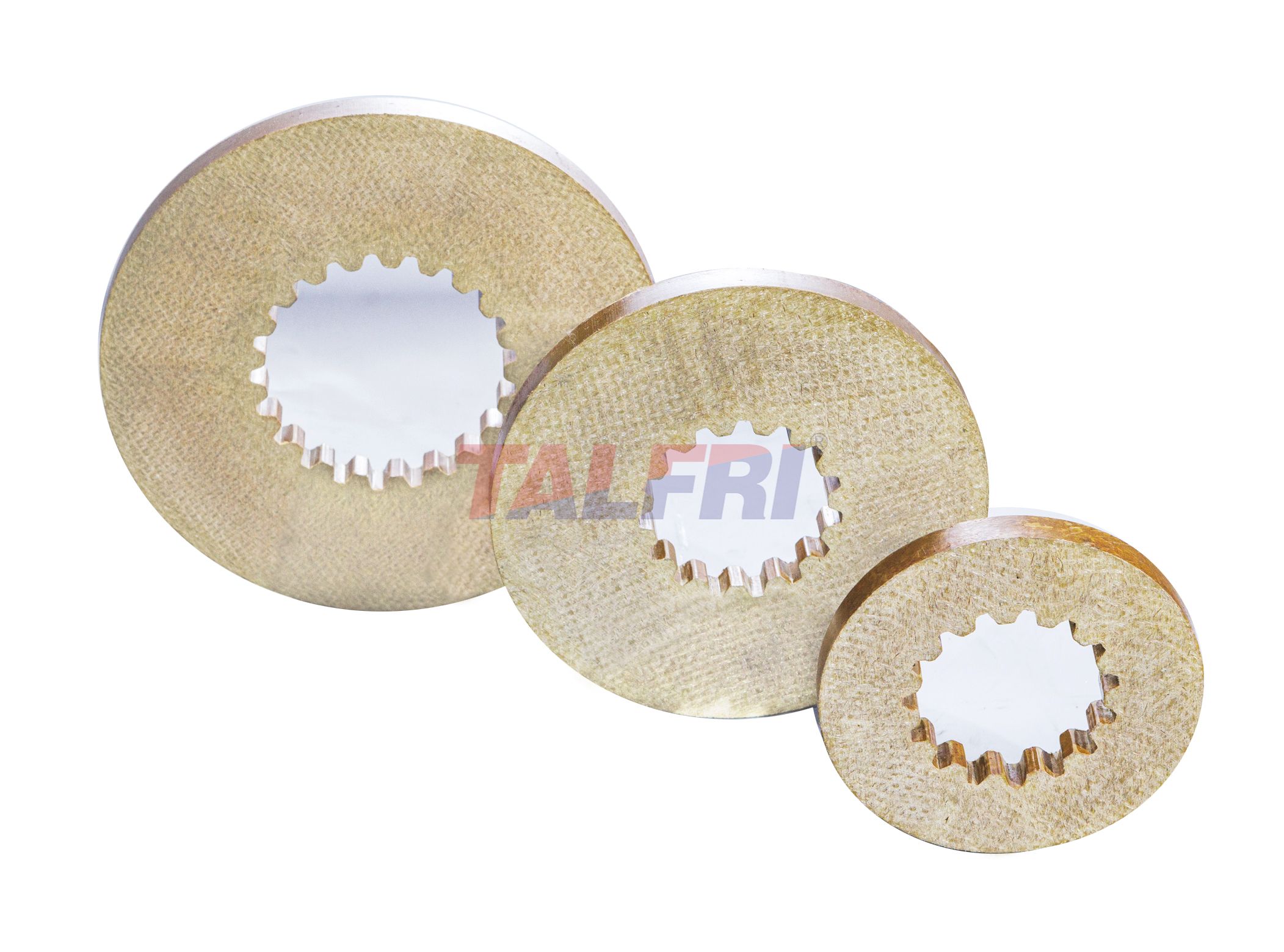

TL3000 is a Non Asbestos Woven Laminated Sheet with exceedingly high hardness and strength. The material is woven from Kevlar, glass fiber and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability.TL3000 can be processed into gear teeth facing due to its high hardness and strength.
Application:
TL3000 is a heavy duty material extensively used in oil drilling、wind power industry and construction machinery and equipments. It can be installed in industrial brake and clutch system,PTO，power transmission system and electric magnetic brake engine.
Specifications:
15 internal tooth 125.15x63.5x13.34mm
21 internal tooth 203.20x88.9x13.34mm
15 internal tooth 171.35x63.5x13.34mm
15 internal tooth 125.15x63.5x6.35mm
Can follow the drawing or sample to make it.
Frictional Properties:
Normal 0.47
Hot 0.45
Static @200°F 0.47
Static @400°F 0.48
Mechanical properties:
Tensile Strength 4300psi
Compression Strength 20300psi
Direct Shear Strength 4700psi
Recommended Operating Range：
Max. Pressure, psi 800
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 600°F (315°C)
Max. Continuous Temperature 550°F (287°C)
Looking for a long-lifespan, non-asbestos, and high-precision gear disc plate supplier?
TL3000 by Talfri offers the performance, safety, and reliability that global industries demand, it have been applied in many industries like Milling machine、press machine、seismic structure of buildings etc.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
