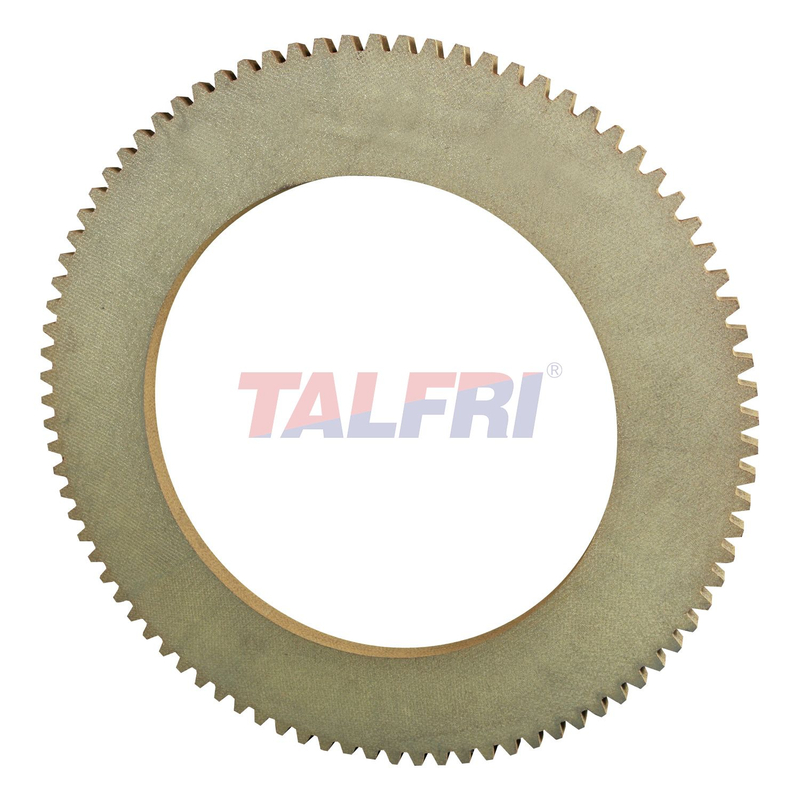

High life span 59 teeth 14" Clutch Tooth Disc Clutch linings for Industrial PTO Clutch Brakes

Overview:

TL3000 is a Non Asbestos Woven Laminated Sheet with exceedingly high hardness and strength. The material is woven from Kevlar, glass fiber and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability.TL3000 can be processed into gear tooth facing due to its high hardness and strength.

Size:

6"    42teeth

7"    47teeth

10"  63teeth

11"  72teeth

14"  59teeth

18"  75teeth

21"  87teeth

Also can follow the drawing or sample to make it.

Frictional Properties:

Normal                         0.40-0.55

Hot                               0.40-0.52

400°F                            0.40-0.50

Mechanical properties:

Tensile Strength                            ≥50MPa

Circumferential shear strength     ≥80MPa

Rockwell hardness                        85-115HRM

Advantage :

Unleash the full potential of your equipments with our exceptional gear tooth clutch discs, designed for superior performance:

• Ultra-Durable Construction: Woven from Kevlar, glass fiber, and brass wire, then resin-impregnated and pressed for maximum rigidity

• High Compression Resistance: More than 100MPA

• High Tensile strength: More than 52MPA

• High Coefficient:0.45-0.55

• Customizable Gear Options: Available in 6"(42teeth) -11"(72teeth)-14"(59teeth)-21"(87teeth) specifications, also can be customized follow the drawing

• Precision-Machinable for tailored industrial clutch/brake configurations

• Enhanced heat dissipation for peak performance

• Reliable, consistent braking performance

• Engineered for extended longevity

Application Scenarios

TL3000 gear tooth disc plates are widely adopted in:

• Industrial brake and clutch systems

• Wind power transmission assemblies

• Oil drilling equipment (PTO systems)

• Electromagnetic brake engines

• Heavy-duty power transmission gearboxes

• Construction machinery and equipment

Customize serivce

• Bonding or relining -More than 10 years of bonding experience, providing customers with professional liner replacement services.




• Machining-Guiyang Talfri Brakes Co., Ltd. has completed processing equipment, providing customers with processing services for special-shaped friction blocks.




• Riveting-We have professional riveting equipment and can provide customers with professional riveting services.

Trading Capacity:

International Commercial Terms (Incoterms): FOB, EXW, CFR, CIF, offering flexible options to suit your trading needs

Terms of Payment: LC, T/T, ALIPAY, PAYPAL, tailored for secure and convenient transactions

Average Lead Time: New style is 45-60days,  reorder is 20days, ensuring timely delivery throughout the year

Number of Foreign Trading Staff: 4~10 People, a dedicated team ensuring smooth international operations

Export Year: 1999-03-01, own over 25 years trading experience.

Export Percentage: 70%~80%, a testament to our significant presence in international trade

Main Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe, showcasing our widespread global reach

Nearest Port: Shenzhen Port, strategically located for efficient logistics, also can do Shanghai or Beijing port.

Brake products

Let’s Build the Future of Friction Together

Looking for a long-lifespan, non-asbestos, and high-precision brake pads supplier?

Guiyang Talfri Brakes Co., Lts is your first choose.

Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
