Factory price 680mm width woven flat sheet for industrial brake system、Paper industry

Overview

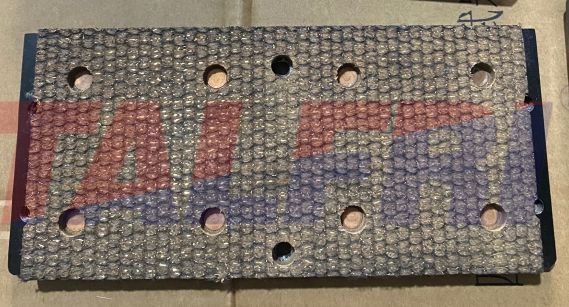

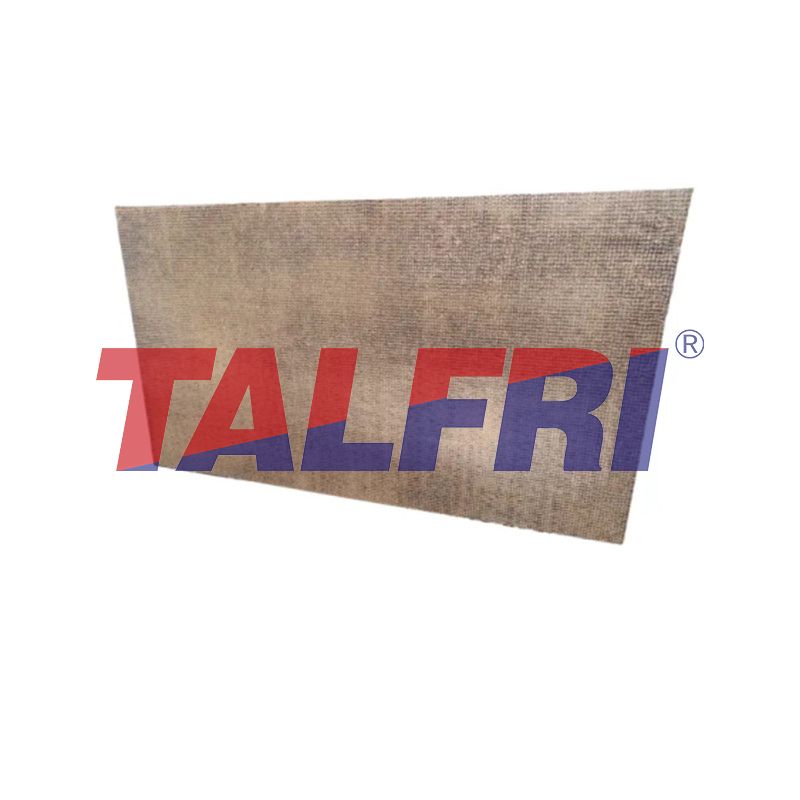

TL2003-S is a medium and heavy-duty friction material, which is a pressed flat sheet made of non-asbestos composite woven from yarns and brass wire. The dense material exhibits outstanding resistance to heat and compression under medium and high loads.

Key Features

• ✅ Ultra-Durable Construction: Woven from yarn, glass fiber, and brass wire, then resin-impregnated and pressed

• ✅ High Wear & Compression Resistance: Withstands extreme mechanical and thermal loads

• ✅ Customizable woven flat Options: Available1000x680mm flat sheet in specifications

• ✅ Lead-Free, Asbestos-Free, Environmentally Safe

• ✅ High coefficient & High quality for tailored industrial clutch/brake configurations, bonding&relining         service

Application

TL2003-S woven flat sheet are widely adopted in:

• Industrial brake and clutch systems

• Wind power transmission assemblies brake pads

• Bonding & relining service

• Electromagnetic brake engines

• Heavy-duty power transmission loader

• Paper printing and packing industry

Dimension:

Flat slab size:39″X27″（1000mmX685mm）

Thickness:0.125″- 0.5″(3.2mm—12.7mm)

For special specifications, pls contact us for information.

Frictional Properties:

Normal                       0.50

Hot                             0.49

400°F                          0.48

Recommended Operating Range：

Max. Pressure, psi                                           500

Max. Rubbing Speed, ft/min                          5000

Max. Intermittent Temperature                      650°F (340°C)

Max. Continuous Temperature                       600°F (315°C)

Company profile

Guiyang Talfri Brakes Co., Ltd. is the market leader in the manufacturing of friction material in China, more than 80% of our products is exported worldwide. Our experience and processing techniques have been refined and perfected to provide our customers with the best quality, most reliable friction material available. A dedication to continuous improvement and customer support make Guiyang Talfri Brakes the perfect partner for your friction material requirements.

When it comes to high quality friction material you need a company that offers the experience necessary to deliver quality products order after order, year after year. Guiyang Talfri Brakes Co., Ltd. have complete control over raw material formulation and manufacturing processes. Our strict quality control and stringent attention to detail mean consistent high quality parts and reliability you can depend on. To this end, Our quality management system is supported by ISO 9001-2015 and IATF 16949-2016, our products have been awarded Germanischer Lloyd (GL) and China Classification Society (CCS) certification.

The company is committed to providing users with stable and reliable high-quality products and diversified friction material development services. According to users' special requirements and working conditions, it can offer high-end small-batch personalized friction material development, production and services, including maintenance, replacement, bonding and riveting of brake linings and clutch pads used on various equipment. And we provide customized production and services for carbon-ceramic brake discs used by enthusiasts to modify their cars.
