TL2004
TALFRI
TL2004
Cotton, No Brass Wire / Roll
0.60
392°F(200℃)
302°F(150℃)
Datesheet
| Quantity: | |
|---|---|
Overview

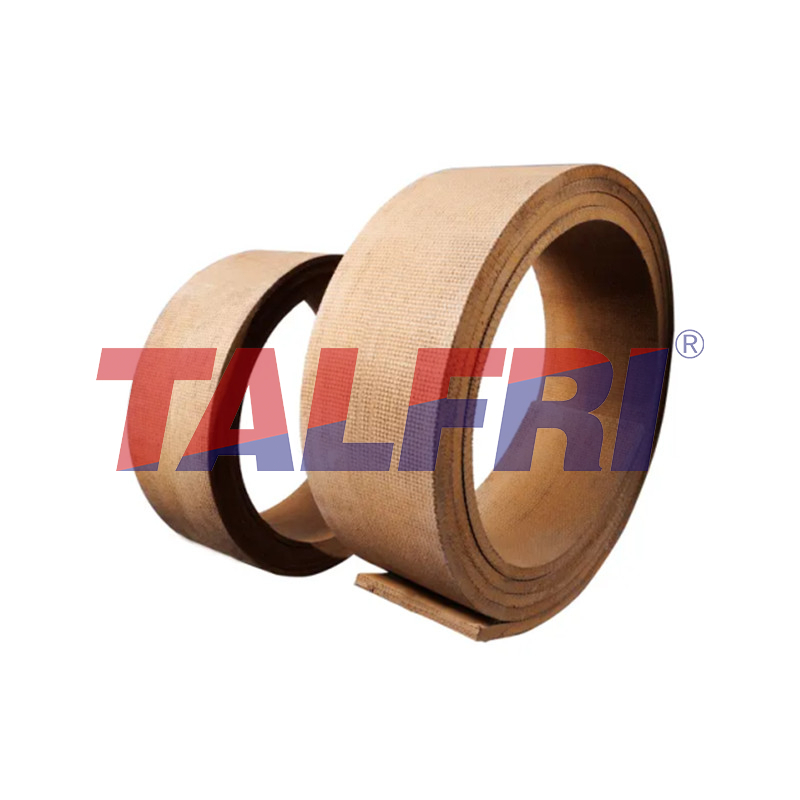

TL2004 is a non-asbestos composite friction material made of woven cotton yarns saturated in special resin .The material exhibits excellent friction coefficient when it is used at low temperature and in static state.
Dimensions：
Width: Max. 510mm ( 20 inches )
Thickness：3.2mm—35mm ( 1/8 – 1.38inch)
Length：10Mtr
Frictional Properties:
Coefficient of friction 0.6
Recommended Operating Range：
Max. Pressure, psi 500
Max. Intermittent Temperature 250°F (120°C)
Max. Continuous Temperature 194°F (90°C)
TL2004 woven brake linings are widely adopted in:
Industrial brake and clutch systems
Mooring winch, anchor winch
Sugar milling equipment
Equipment for static friction applications
Marine and Offshore industry
Harbour and shipborne cranes and elevators
Steelwork overhead cranes or industrial eccentric presses
Guiyang Talfri Brakes Co., Ltd. is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European and American markets. As the leader manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.
Participated in the revision of the national standards "Friction Plates for Industrial and Agricultural Machinery" GB/T 11834-2011 and "Brake Linings for Automobiles" GB5763-2018.
It has 7 authorized invention patents and 11 authorized utility model patents.
In 2017, it won the third prize of the Science and Technology Progress Award of Guizhou Province.
The company's products have obtained the "European Explosion-proof Certification", "DNV Product Form Approval" and "China Classification Society (CCS) asbestos-free Certification".
Passed the international quality management system certification (ISO9001:2015)、
Automotive Industry Quality Management System Certification (IATF16949:2016)、
And the Quality Management System Certification for Weaponry and Equipment (GJB90011-2017).
Asan
Masada
Hawkhead
Pusnes
Damen
Midland brakes
Kuhne Intertech
Looking for a long-lifespan, non-asbestos, and high-quality woven brake lining supplier?
Talfri offers the performance, safety, and reliability that global marine and industries demand, also have produce woven brake lining TL2003、TL2005、TL2012 for your different application choose.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
