TL2003
TALFRI
TL2003
Brass
0.49
650F(340℃)
600F(315℃)
Datesheet
Overview

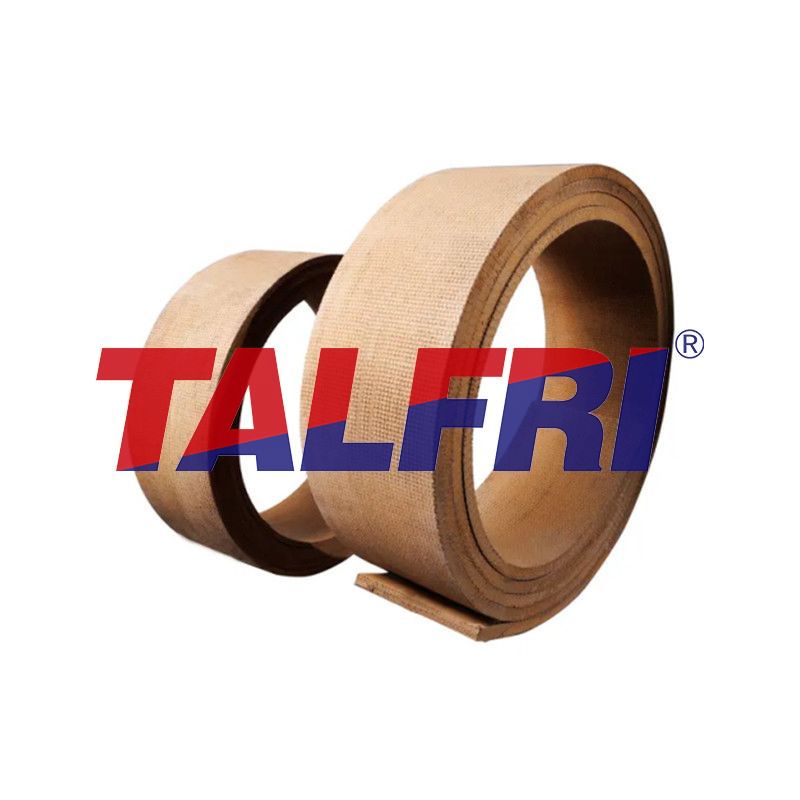

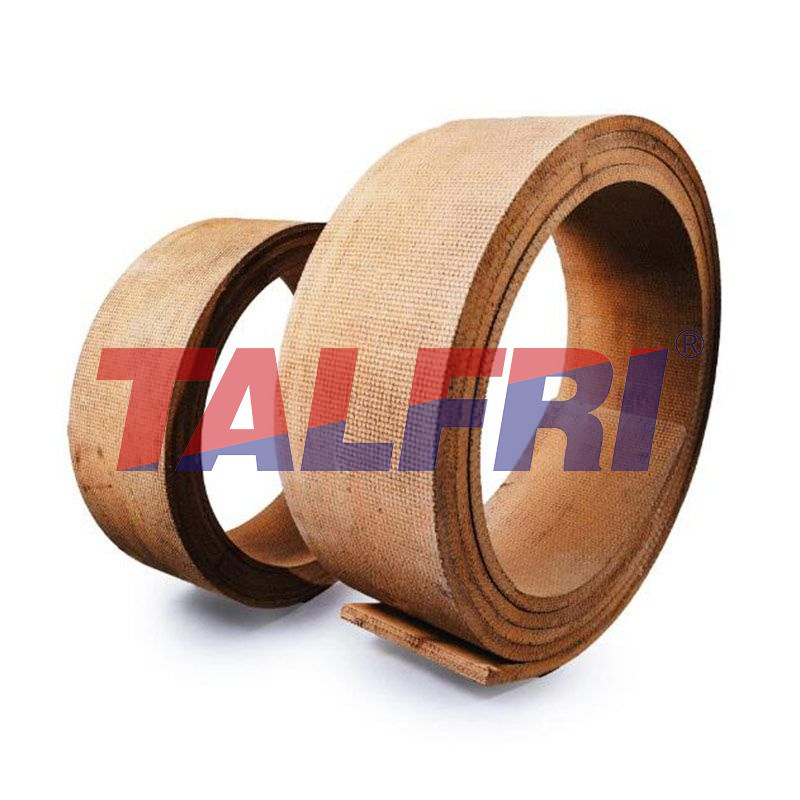

TL2003 is a semi-flexible Non Asbestos Brake Lining for medium and heavy duty applications. The solid composite is woven from several types of fabric containing brass wire and impregnated with specially developed resins. The dense, tough material exhibits high resistance to heat and wear and excellent stability under load. TL2003 is suitable for cast iron and steel working surface.
Key Features
✅ Ultra-Durable Construction: Woven from yarn, glass fiber, and brass wire, then resin-impregnated and then grinding
✅ High Wear & Higher temperature Resistance: Withstands extreme mechanical and thermal loads
✅ Customizable Brake lining Options: Available in max width 510mm, thickness 3.2-35mm, the max length
15meters one roll specifications
✅ Lead-Free, Asbestos-Free, Environmentally Safe

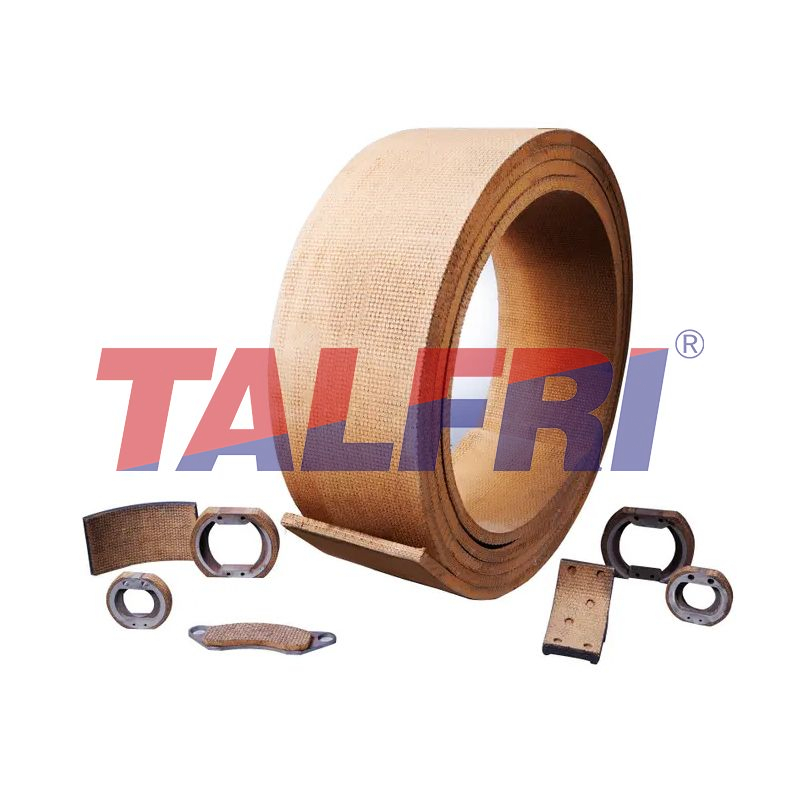

✅ High density, both side grinding, longer life span for winch, windladss, chain wheel, industrial brake system bonding and relining
Dimension：
Width: Max 510mm ( 20inches )
Thickness: 3.2mm—35mm ( 1/8 – 1.378 inch)
Length: 10-15Mtr
For special specifications, pls contact us for information.
Frictional Prope
rties:
Normal 0.49
Hot 0.50
400°F 0.48
Recommended Operating Range：
Max. Pressure, psi 500
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)
Installation method
1. Bonding
2. Riveting

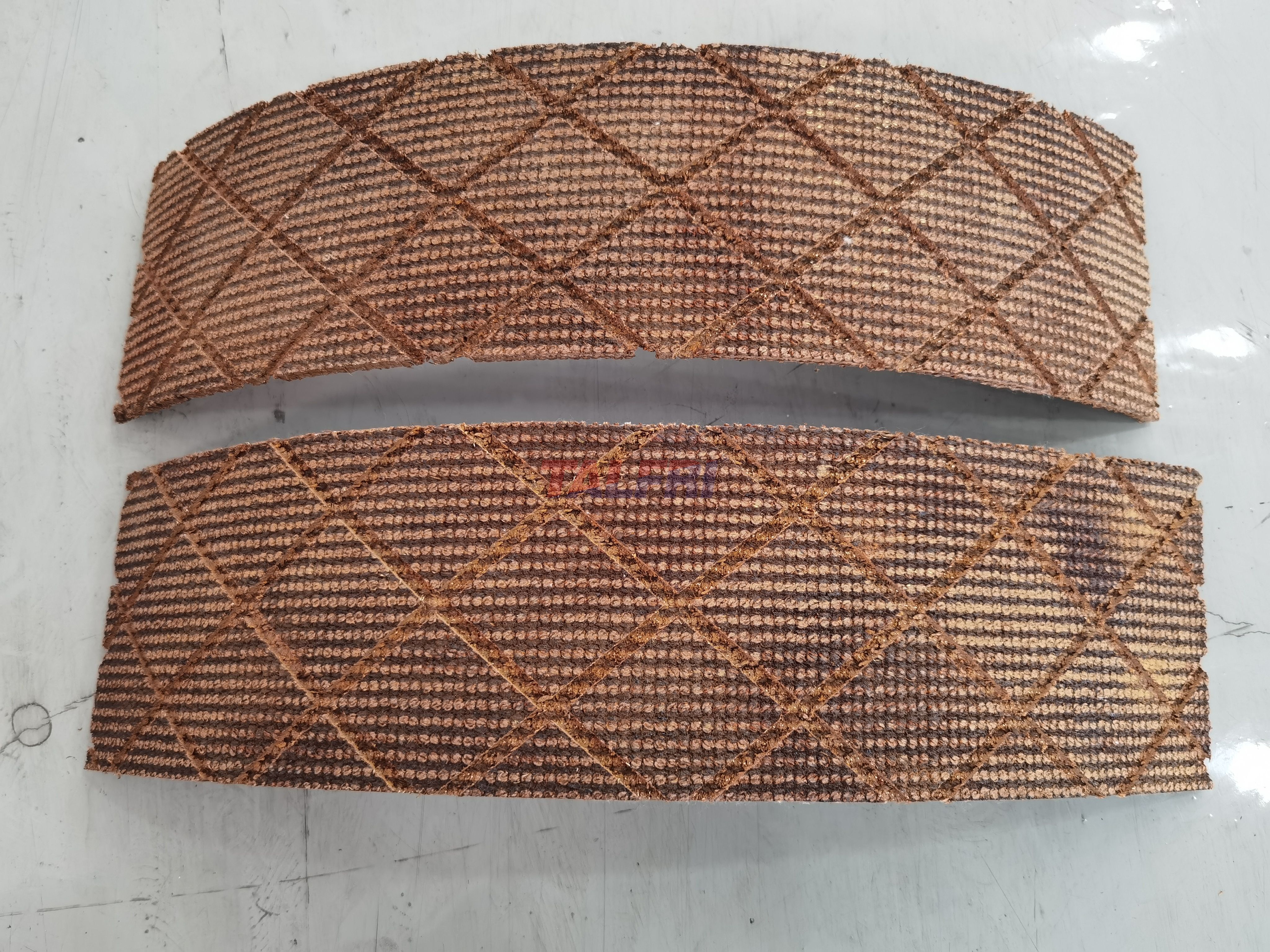

3. Grooving
4. Custom-made
Application:
TL2003 is extensively used in marine and industrial applications:
Industrial brake and clutch systems
Wind power transmission brake pads
Oil drilling equipment winch、drilling and work over rigs
Channel cleanout、Port dredging dredge boat
Heavy-duty power loader
Winch and windlass、 hoist、crane、 winder、dynamic compactor
Agricultural vehicle, elevator, and construction machinery
Paper and packing industry
Bonding and relining maintenance industry
Why Choose Talfri?
With over 25 years of experience, Guiyang Talfri Brakes Co., Ltd. is the first and only Chinese manufacturer of non-asbestos laminated friction materials. Backed by imported technology and a commitment to innovation, we serve global clients in over 75% export markets including the USA, Europe, Japan, Korea, Singapore, Turkey and Australia etc., we also have supply the woven brake lining to many famous original equipment manufacturers.
ISO 9001:2015 & IATF 16949:2016 certified

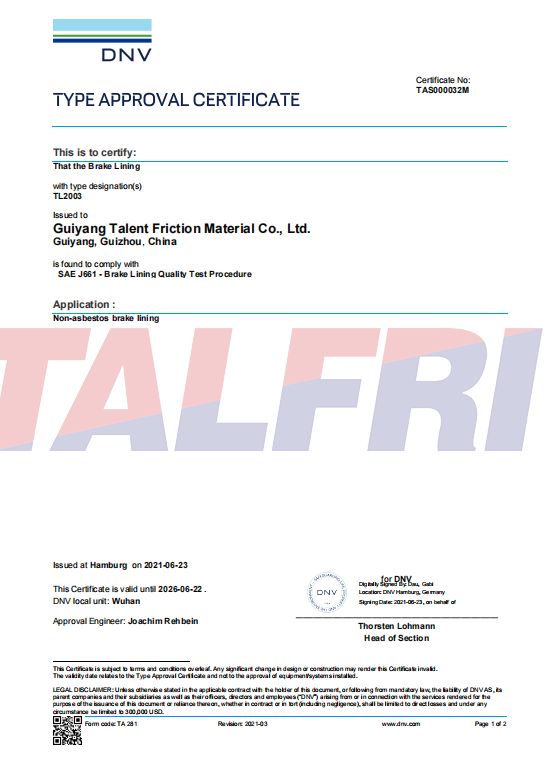

DNV & CCS quality type approved
Fully compliant with SAE-J661 & asbestos-free standards
Traceable production with inspection reports, CoC, and performance tests available
Over 6% of annual revenue invested in R&D

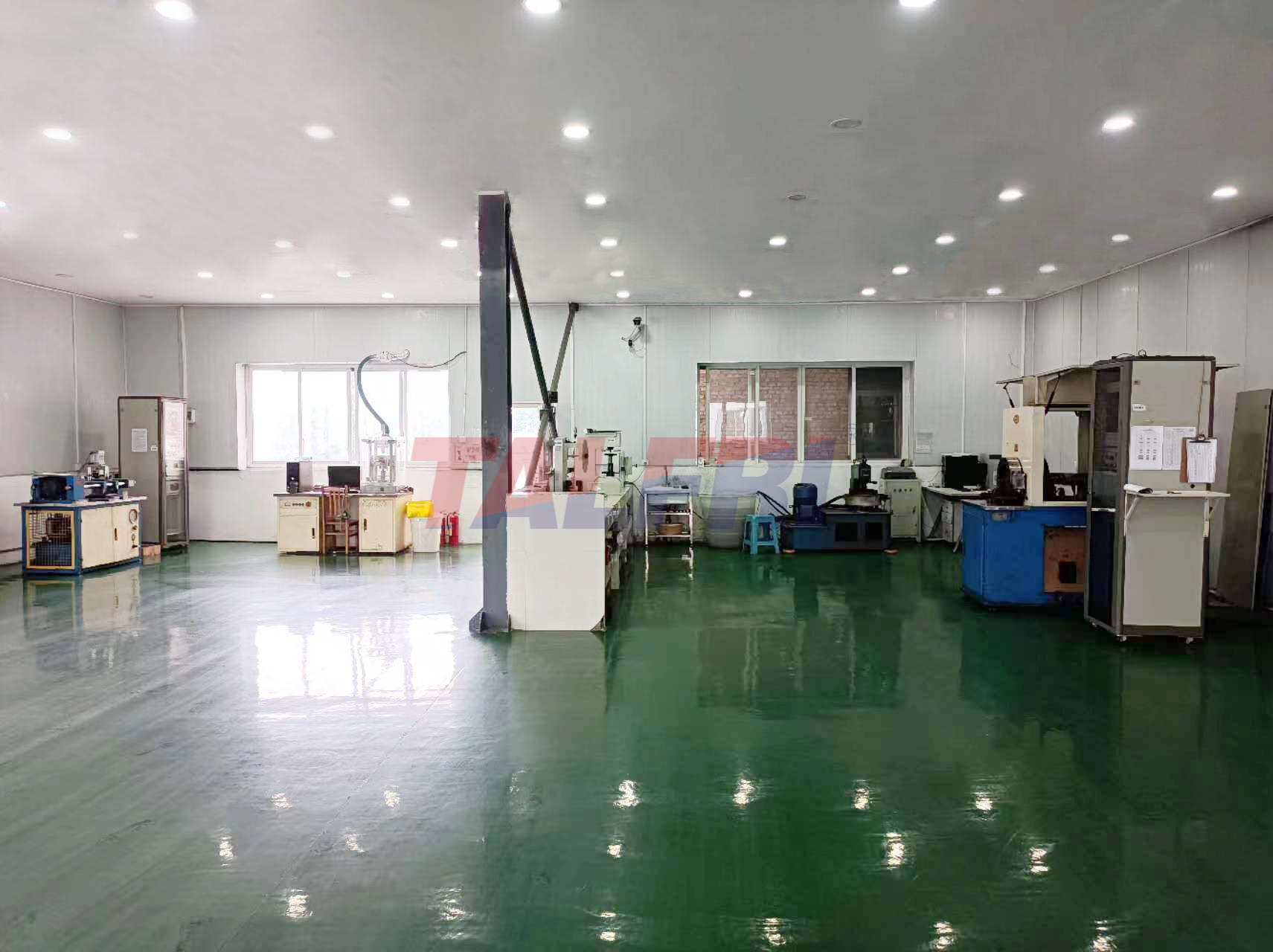

In-house lab with full friction material testing capabilities
Holder of multiple patents for high-performance composite formulations
Holder of multiple invention patents and utility model patents
Damen、Masada、Hatlapa、TTS、Asan、Hawkhead、Midland、Intertech
Looking for a long-lifespan, non-asbestos, and high-quality woven brake lining supplier?
TL2003 by Talfri offers the performance, safety, and reliability that global marine shipbuilding and industries demand.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
