TRH3010
TALFRI
TRH3010
Fully-cured
0.42
600℉（315℃）
500℉（246℃）
Datesheet
| Quantity: | |
|---|---|
Overview:

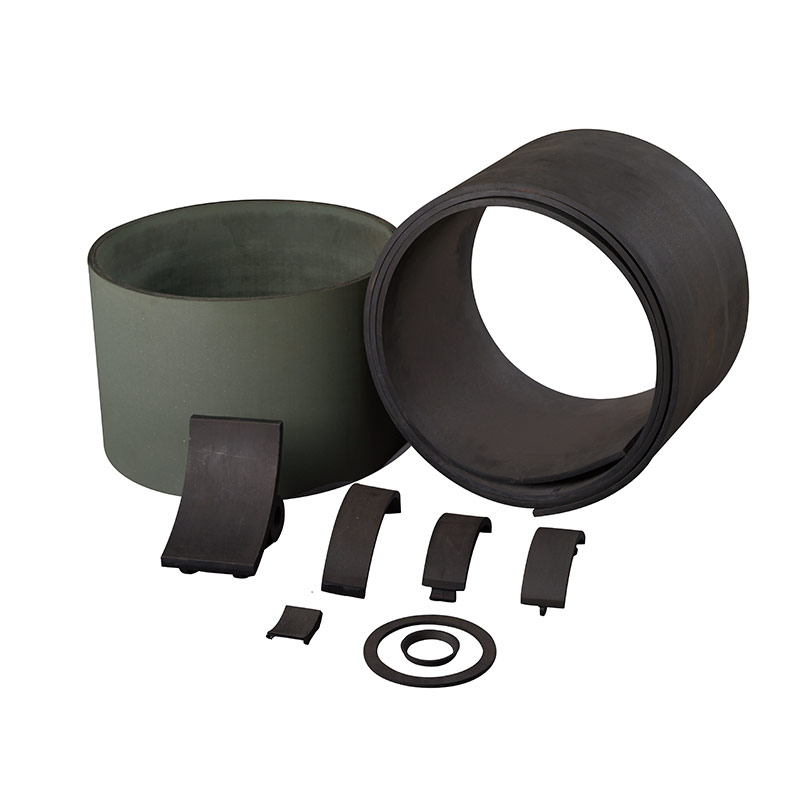

Flexible molded lining TRH3010 is a semi-rigid and fully cured non asbestos brake lining of medium friction coefficient. The brake lining is extruded from a mixture of various materials and rubber. The solid material exhibits exceptional resistance to heat and excellent frictional stability.
Applications：
Flexible molded lining is suitable for light duty machinery,such as elevator, crane, excavator, hoist, centrifuge, forklift,agricultural machinery, overhead crane, punching machine and mining machine, etc. The material can be bonded on the brake band with special glue and becomes rigid after full curing process.
Dimension：
Width: Max 330mm ( 13 inches )
Thickness：3.2mm—12.7mm ( 1/8 – 1/2 inch)
Length：5Mtr
Frictional Properties:
Normal 0.42
Hot 0.38
400°F 0.43
Recommended Operating Range：
Max. Pressure, psi 150
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 600°F (315°C)
Max. Continuous Temperature 550°F (287°C)
