TL2012
TALFRI
TL2012
Special Fiber, Brass Wire/Roll
0.51
650F(340℃)
600F(315℃)
Datesheet
| Quantity: | |
|---|---|
Overview
TL2012 is a semi-flexible Non Asbestos, Non glass fiber Brake Lining with brown color for heavy duty applications. The solid composite is woven from several types of Fabric containing brass wire and impregnated with specially developed resins. The dense, tough material exhibits high resistance to heat and wear and excellent stability under load. Especially, it’s exhibits very strong tensile strength.
TL2012 is suitable for cast iron and steel working surface. Especially suitable for hot weather such as Southeast Asia countries.
very high mechanical resistance
stable friction coefficient
high life span
max temperature 340°C
high strength
without glass fiber
Dimension：
Width: Max 510mm ( 20inches )
Thickness：3.2mm—35mm ( 1/8 – 1.378 inch)
Length：10-15Mtr
Frictional Properties:
Normal 0.51
Hot 0.51
400°F 0.54
Recommended Operating Range：
Max. Pressure, psi 700
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)
TL2012 woven brake lining rolls material are widely adopted in:
Industrial brake and clutch systems
Marine anchor winch, mooring winch and windlass
Oil drilling equipment winch
Construction machinery
Heavy-duty equipment crane, hoist

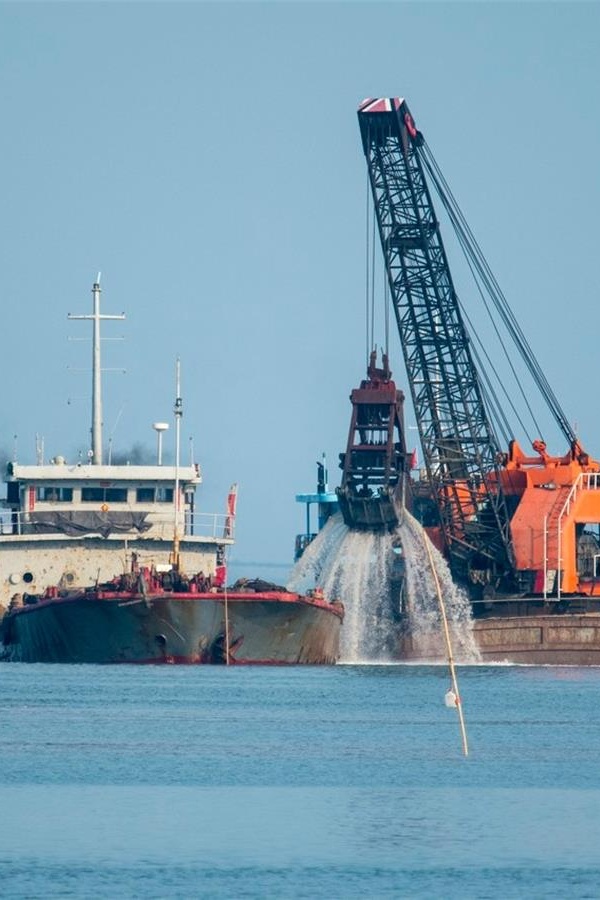

Dredger，Floating crane，shore tackle
Offshore industry：Marine shipbuilding industry、Marine engineering equipment manufacturing industry、Marine engineering construction industry、Marine wind power generation
Agricultural vehicle
Shaking elevator
Guiyang Talfri Brakes is a professional manufacturer of Non-asbestos friction material in China. Our products are inspected under SAE-J661 Standard and has already obtained certification from CCS and DNV, and our quality management system are supported by ISO9001:2015, IATF 16949:2016. Relying on superior quality, strong technical power, excellent service, prompt delivery, Talfri Brakes wins good reputation and recognition from the domestic and abroad markets, more than 70% of our products have been exported to European and American markets and Southeast Asian countries. As the leader manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.
With comprehensive test equipment，Guiyang Talfri Brakes is capable to offer the compared testing service and customized friction products.
Certificates
Looking for a long-lifespan, non-asbestos, and high-quality woven friction brake lining material supplier?
TL2012 by Talfri offers the performance, safety, and reliability woven rolls that meet global marine shipbuilder winch windladss and industries' brake lining demand.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
