TL3000
Talfri
0.48
340
300
| Quantity: | |
|---|---|
Overview
This products have been widely used in port machinery and mine machinery industry, here introduce the material of TL3000, also have several different materials can be choosed, welcome to your inquiry.

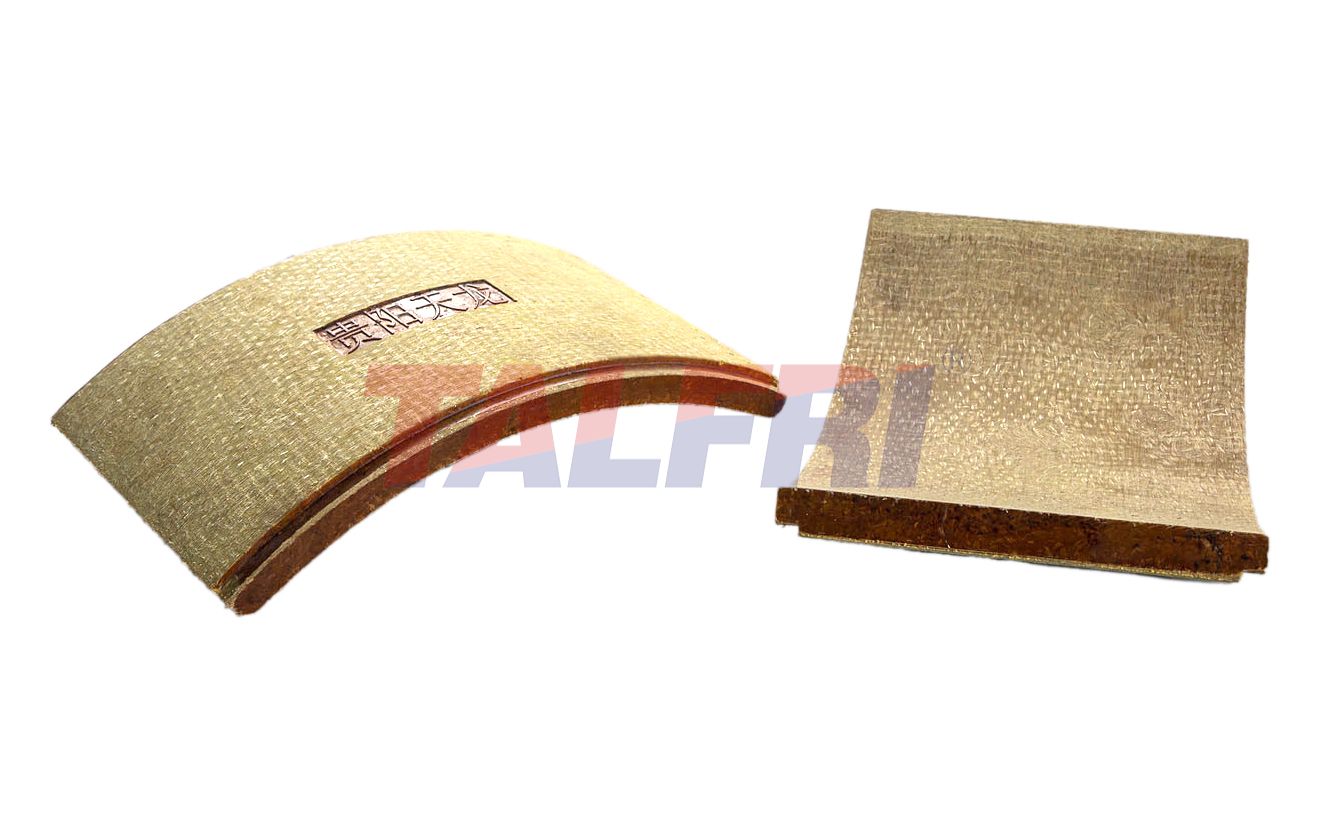

TL3000 is a Non Asbestos Woven Laminated Sheet with exceedingly high hardness and strength. The material is woven from Kevlar, glass fiber and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability.
✅ Ultra-Durable Construction: Woven from Kevlar, glass fiber, and brass wire, then resin-impregnated and pressed for maximum rigidity
✅ High Wear & Compression Resistance: Withstands extreme mechanical and thermal loads
✅ High coefficient: 0.45-0.55
✅ High temperature: 340°C
✅ Customizable Brake pads Options: Available in Φ160 to Φ710 specifications
✅ Lead-Free, Asbestos-Free, Environmentally Safe
✅ Precision-Machinable for tailored industrial clutch/brake configurations like wind power brake, port brake, Mine brake
Size:
Φ160
Φ200
Φ250
Φ300
Φ315
Φ400
Φ500
Φ630
Φ710
Frictional Properties:
Normal 0.47
Hot 0.45
Static @200°F 0.47
Static @400°F 0.48
Mechanical properties:
Tensile Strength 4300psi
Compression Strength 20300psi
Direct Shear Strength 4700psi
Recommended Operating Range：
Max. Pressure, psi 800
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 600°F (315°C)
Max. Continuous Temperature 550°F (287°C)

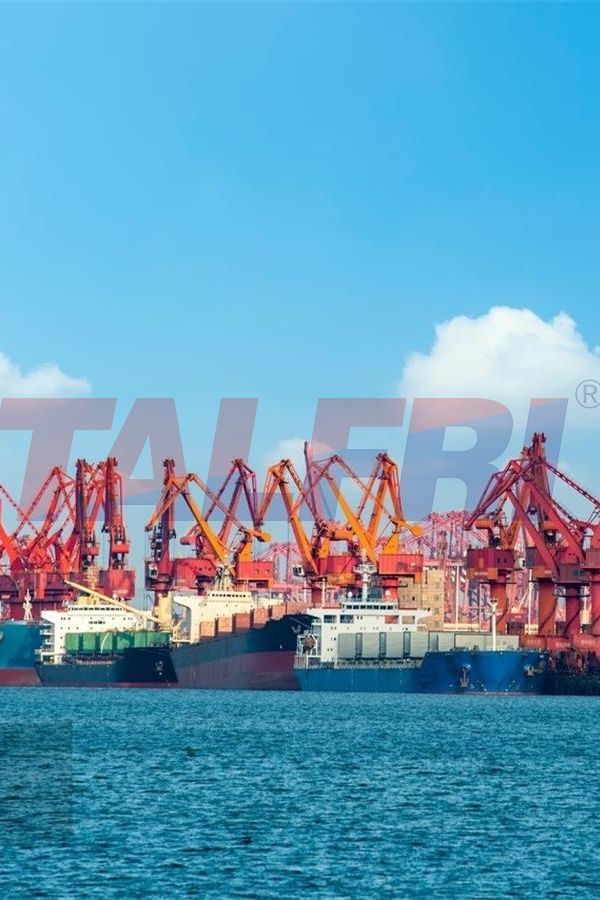

TL3000 gear tooth disc plates are widely adopted in:
Port machinery
Crane
Hoist
Portal crane
Shore tackle
Dragger
Grab bucket
Tugboat
Sand dredger
Dredger
Pilot vessel
Roll-on-roll-off ship
Bulk cargo ship
Mine winch brake

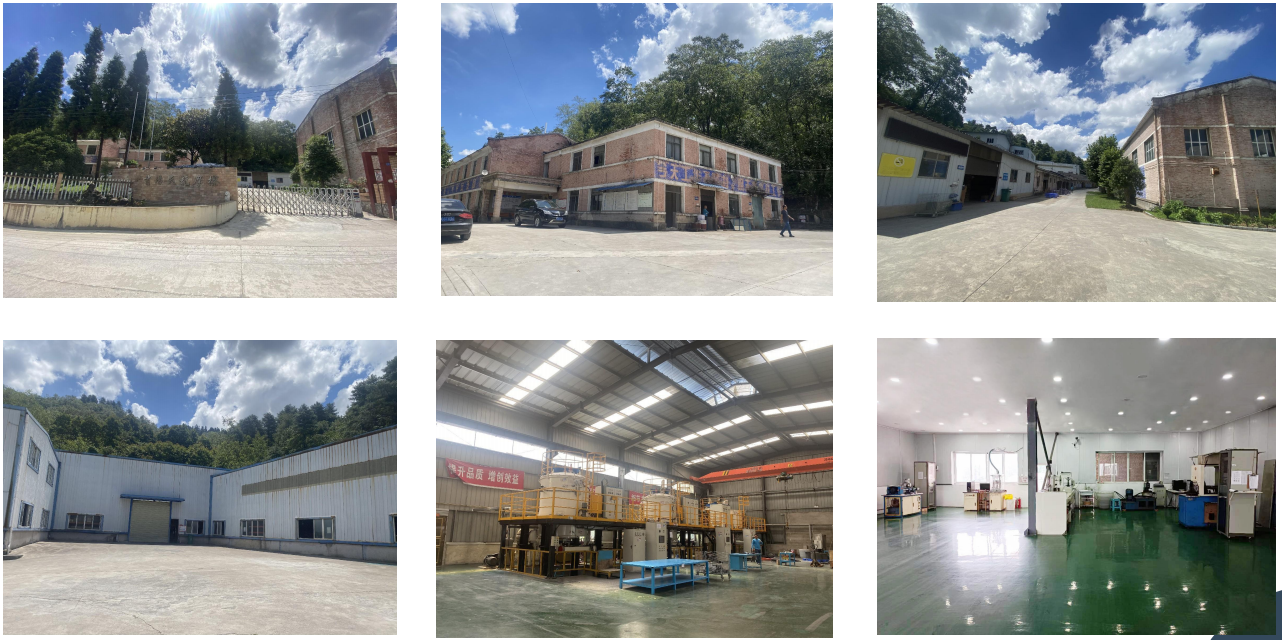

Guiyang Talfri Brakes Co., Ltd. is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European and American markets. As the leader manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.
Our products are inspected under SAE-J661 Standard and has already obtained certification from China Classification Society(CCS) and Germanischer Lloyd(GL), and our quality management system are supported by ISO9001:2015, IATF 16949:2016. Relying on superior quality, strong technical power, excellent service, prompt delivery, Talfri Brakes wins good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies.
With comprehensive test equipment，Guiyang Talfri Brakes is capable to offer the compared testing service and customized friction products.
Welcome to contact us for more information.

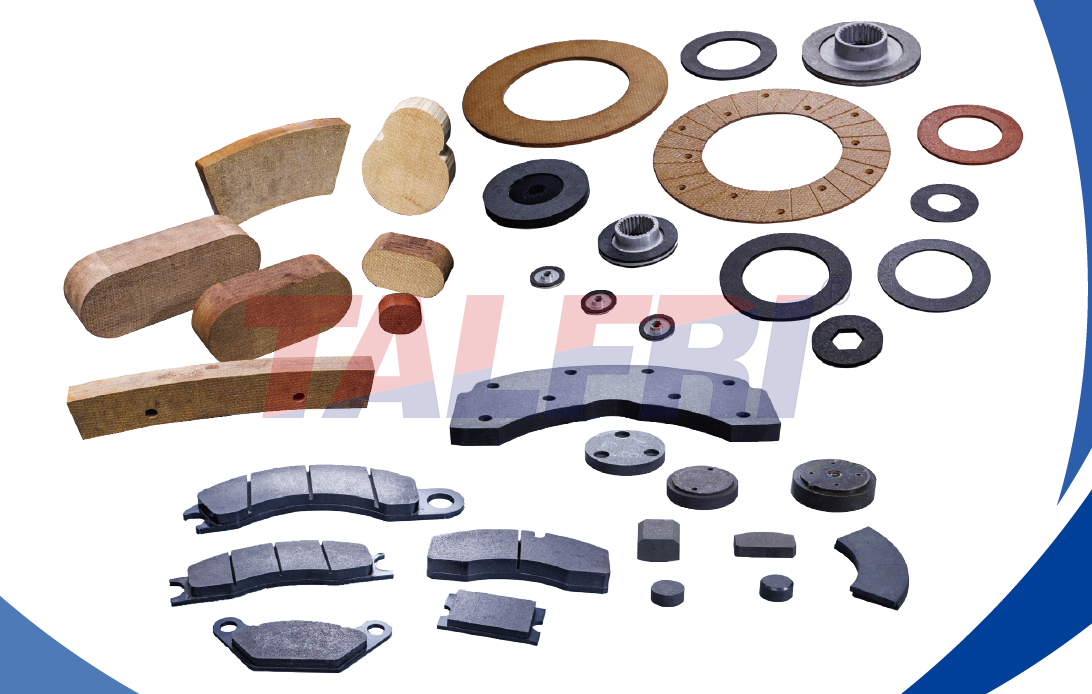

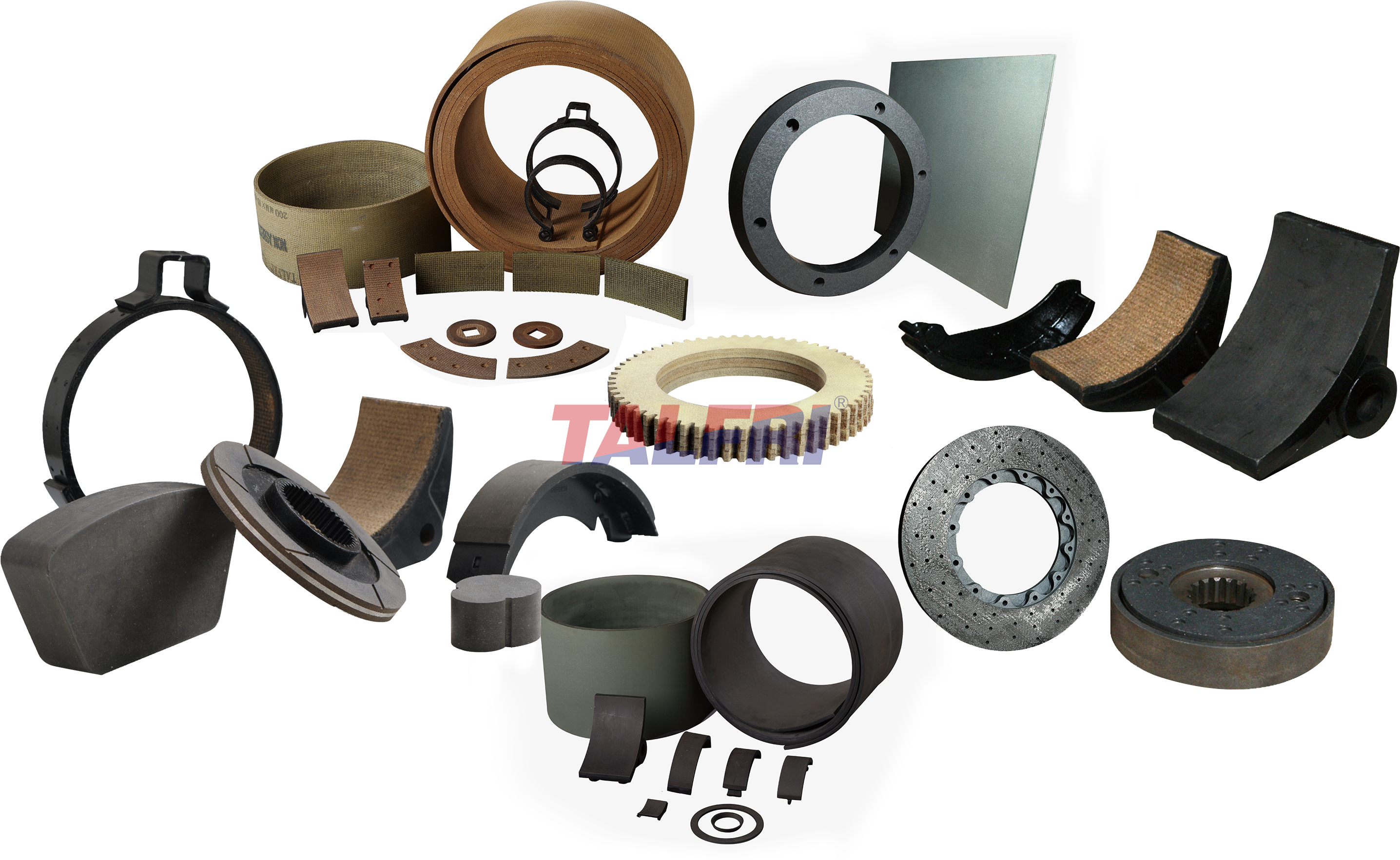

Products range
✦ Woven brake lining roll / sheet
✦ Oil rig brake block
✦ Extruded brake lining roll
✦ Molded friction sheet / gear teeth ring
✦ Laminated friction sheet / gear teeth facing
✦ PTO Gear teeth facing
✦ Industrial friction products
✦ Carbon ceramic brake rotor ( car modification )
Other customized friction products are available.
A: Woven brake lining roll, Extruded brake lining roll, Gear teeth clutch disc, Brake Pads/Shoes, Brake Disc/Drum, ,Brake Kits, Accessories, Carbon ceramic brake rotors.
A: United States, Europe, Singapore, Thainland, Turkey, Japan, Korea, etc.
A:Our brake pads are made of high-quality organic materials, which have excellent heat resistance and friction performance.
A:Each formula has its own advantages. We can follow your application to recommend the suitable material to you.
