TL3000
TALFRI
0.45-0.55
| Quantity: | |
|---|---|
Overview:

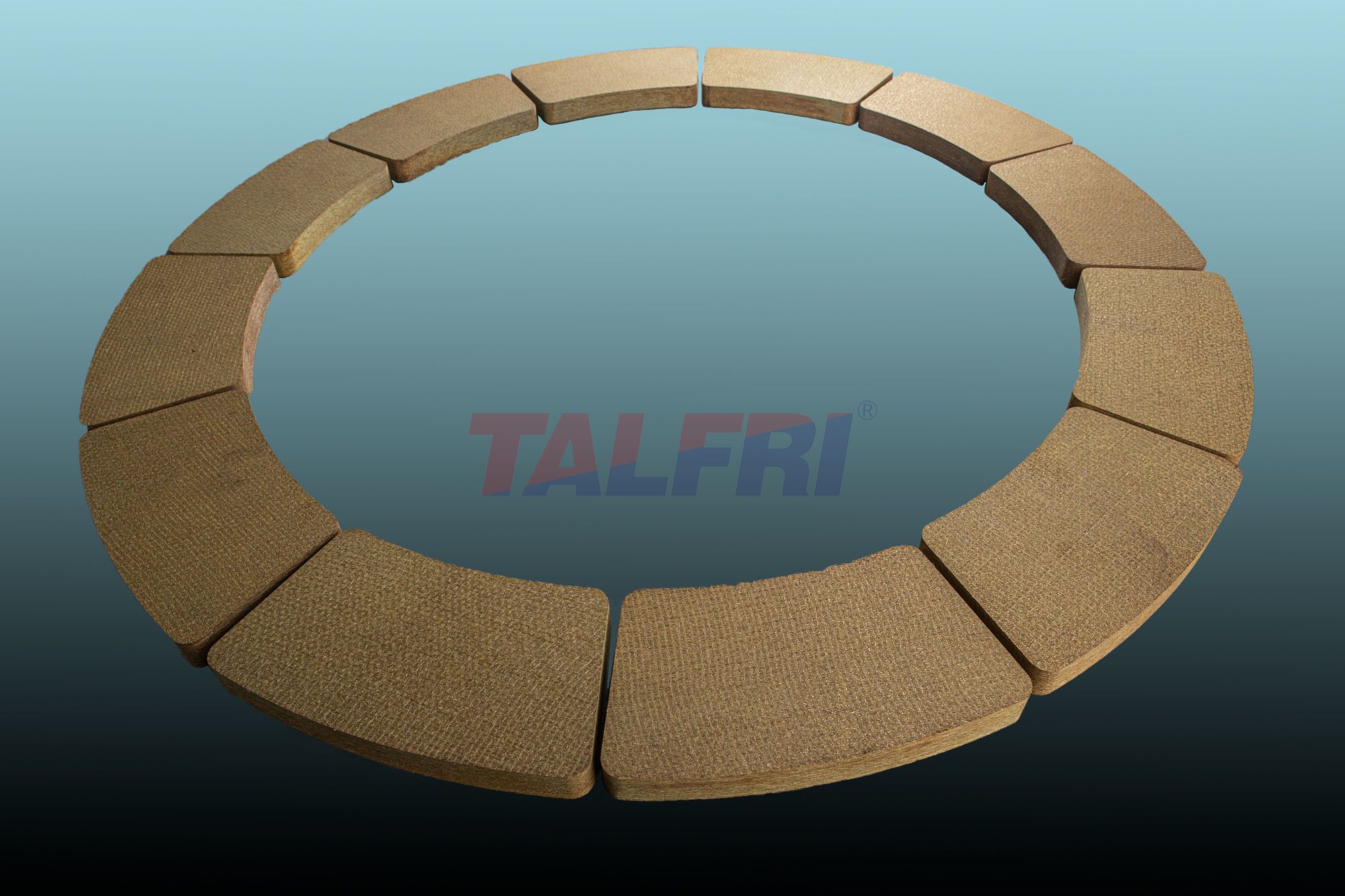

TL3000 is a Non Asbestos Woven Laminated Sheet with exceedingly high hardness and strength. The material is woven from Kevlar, glass fiber and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability.TL3000 can be processed into gear teeth facing due to its high hardness and strength.
Size:
1000T、1600T、2500T、4000T、6300T、8000T etc, or can follow your size and drawing to make it.
Ultra-Durable Construction: Woven from Kevlar, glass fiber, and brass wire, then resin-impregnated and pressed for maximum rigidity
High Wear Resistance: Withstands extreme mechanical and thermal loads, can provide the test report
High compressive strength and will not break
High friction coefficient: 0.45-0.55
Customizable Brake Block Options: Available in 1000T、 1600T、 2500T、 4000T、 8000T specifications
Lead-Free, Asbestos-Free, Environmentally Safe
Precision-Machinable for tailored industrial electric screw press and hot die forgeing press
Frictional Properties:
Normal 0.47
Hot 0.45
Static @200°F 0.47
Static @400°F 0.48
Mechanical properties:
Tensile Strength 4300psi
Compression Strength 20300psi
Direct Shear Strength 4700psi
Recommended Operating Range：
Max. Pressure, psi 800
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 600°F (315°C)
Max. Continuous Temperature 550°F (287°C)
TL3000 Friction Blocks are widely adopted in:
Industrial brake and clutch systems
Wind power transmission assemblies
PTO Brake Clutch systems
Heavy-duty power transmission system
Press industry
Over 26 years' production and industry experience
ISO 9001:2015 & IATF 16949:2016 certified
DNV & CCS quality type approved for woven brake lining roll
Holder of multiple patents for high-performance composite formulations
Delivery time is short and can be customized as required
The product has stable quality and excellent performance
Over 75% products have been exported to USA,UK, GERMANY, ITALY, SINGAPORE, NEW ZEALAND, KOREA, JAPAN, TURKEY
Participated in the revision of the national standards "Friction Plates for Industrial and Agricultural Machinery" GB/T 11834-2011 and "Brake Linings for Automobiles" GB5763-2018
In 2017, it won the third prize of the Science and Technology Progress Award of Guizhou Province
In 2023, it was awarded the title of "Specialized, Refined, Unique and Innovative Small and Medium-sized Enterprise" in Guizhou Province.
Looking for a long-lifespan, non-asbestos, and high-precision Friction Block supplier?
TL3000 by Talfri offers the performance, safety, and reliability that meet the global industries demand, show the excellent performance.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
FAQ
Q: Do you have any certificates?
A:Yes, IATF16949, ISO9001, GLB9001, DNV, CCS, etc.
Q: Could you please provide me with the catalog?
A:Yes, please share your email ID or contact us, the catalog will be sent to you soon.
Q:Could you produce the brake pads as our requirements?
A:Yes, we have a strong technical team, can follow your demands to recommend the suitable material and make the drawing to you confirm, then arrange the production.
Q: Do you accept the trial order?
A:Yes, we accept.
