TRH3020
TALFRI
0.40-0.55
650F(340℃)
600F(315℃)
| Quantity: | |
|---|---|
Overview

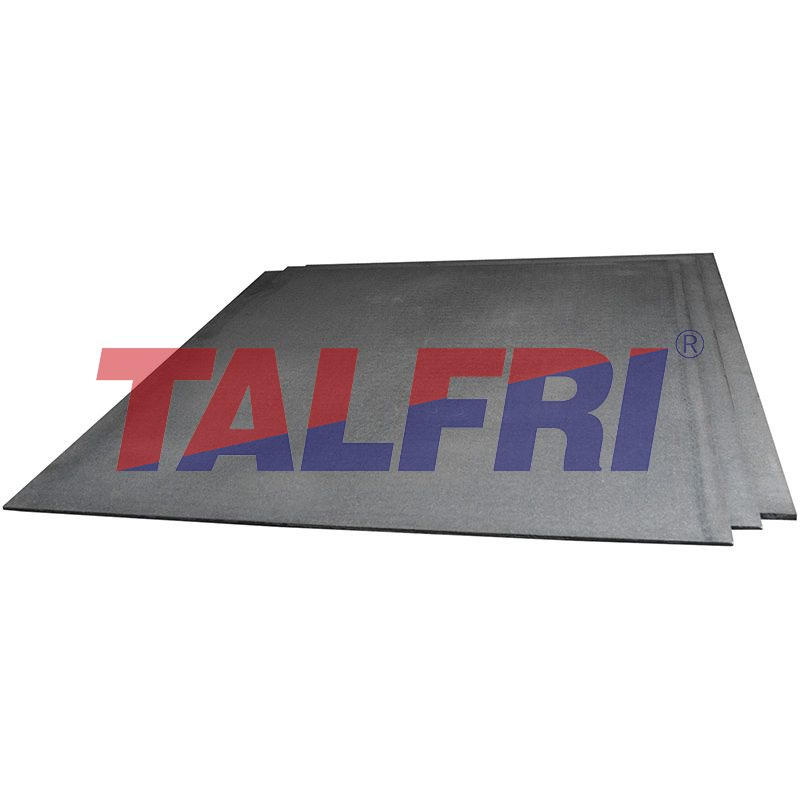

TRH3020 is a rigid molded Non Asbestos Brake Sheet of medium and high frictional coefficient. The flat sheet exhibits excellent resistance to heat and compression and outstanding stability in applications. TRH3020 sheet can be processed into segments or rings and other shapes by tooling or machining to be used in industrial, mining, coal, marine equipments etc.

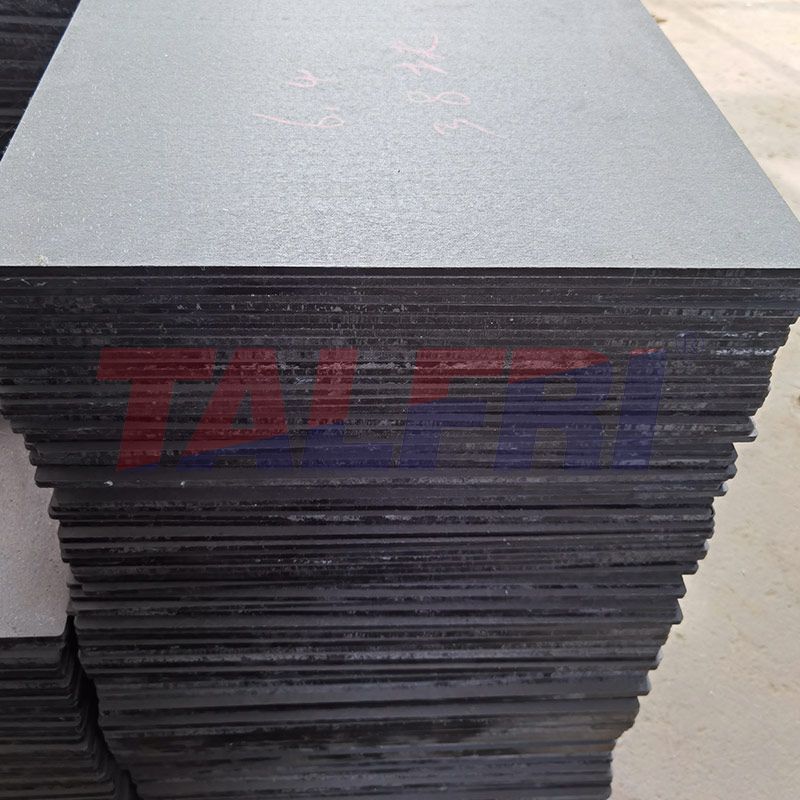

Flat Sheet Size
1.Length x Width: 762mm x 762mm (30 inches x 30 inches)
Thickness：3.2mm—25.4mm ( 1/8 – 1 inch)
2.Length x Width: 508mm x 508mm (20 inches x 20 inches)
Thickness：3.2mm—30mm ( 1/8 – 1.18 inch)
Frictional Properties
Normal 0.50
Hot 0.48
400°F 0.50
Recommended Operating Range
Max. Pressure, psi 280
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)

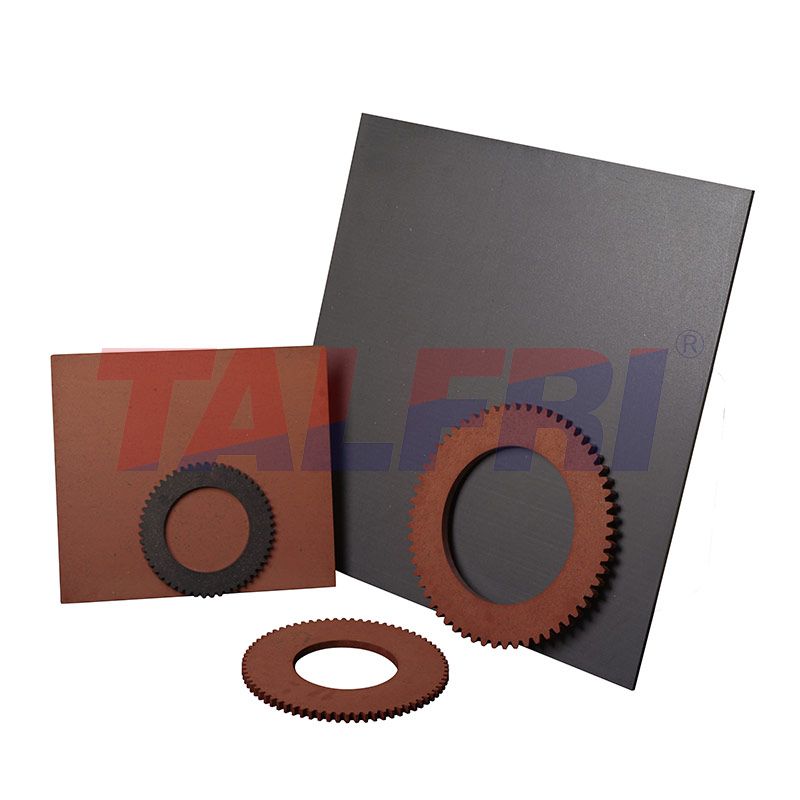

TRH3020 Brake sheet can be made to segments, rings, pads etc., and are widely adopted in:
Industrial brake and clutch systems
Wind power transmission assemblies
Oil drilling equipment (PTO systems)
Electromagnetic brake engines
Mining industry
Coal winch brake equipment
Advantage
Great flexibility：can be processed into various shapes according to the application
Stable quality: exported to oversea's customer every month
High coefficient:0.45-0.55，the performance is excellent
Appearance is very good, smooth, fine and clean
Longer brake life
Guiyang Talfri Brakes Co., Ltd.
Guiyang Talfri Brake is a thriving and successful enterprise, gradually establishing itself as a leading supplier of non asbestos friction material in China. We specialize in the manufacturing and supply of high-performance woven brake lining, brake sheet, brake pads, carbon ceramic brake rotors and some bonding & relining services.
Talfri brake have been trading since 1999, we are the first and only Chinese manufacturer of non-asbestos laminated friction materials. Our friction materisa are made by imported technology and a commitment to innovation, and our quality products and fantastic customer service has helped the company grow. Our products are mainly exported to North America, Europe, and many other countries and regions.
FAQ
1. What is your terms of payment?
T/T 30% as deposit, and 70% before loading . We'll show you the photos of the products and packages before you pay the balance. Also, we accept flexible safe payment term, T/T, PAYPAL,ALIPAL etc.
2. What is your terms of delivery?
Normally EXW, FOB, also CNF, CIF
3. How about your delivery time?
About 30days - 50 days , Generally . If have stock, can send out within 1-3days.
4. Can you produce according to the samples?
Yes, we can design and produce by your samples or technical drawings. We also can recommend the suitable material to meet your application.
5. What is your sample policy?
We can supply the sample , but the customers have to pay the sample the courier cost. So before placing sample order, please ask us for confirmation in advance.
