TRH3031
TALFRI
| Quantity: | |
|---|---|
Overview

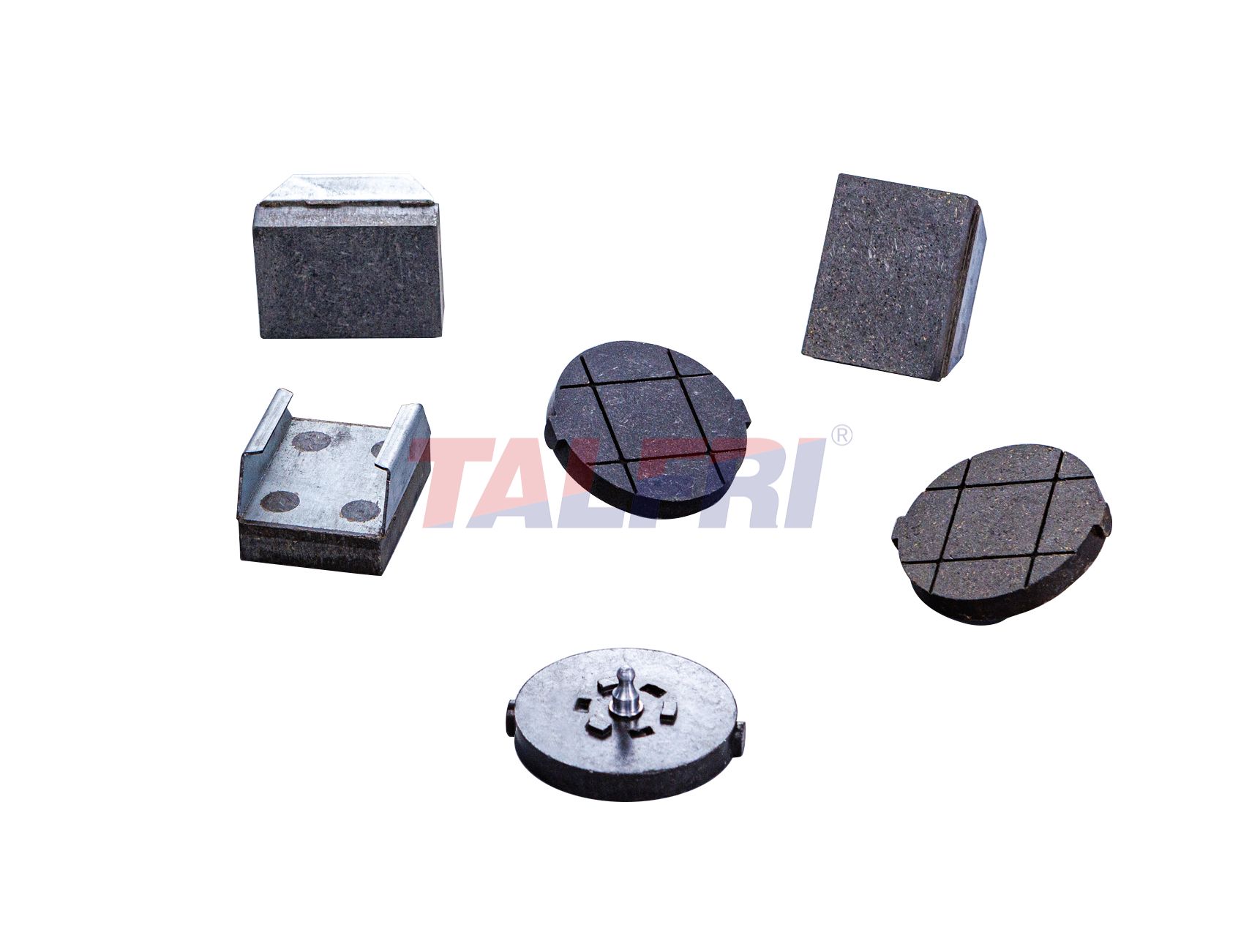

TRH3031 is a rigid molded product grey in colour utilising Kevlar fibers and a high percentage of brass chippings. TRH3031 offers excellent thermal resistance, compression and exhibits outstanding stability under heavy loads, at the same time maintaining a high resistance to wear. TRH3031 is manufactured in sheets, segments, rings and many special shapes by either machining or moulding.
TRH3031 brake pads are widely adopted in:
Industrial brake and clutch systems
Wind power
Tension braking device
Packing and printing brakes
Heavy-duty power transmission gearboxes
Dimension：
Flat sheet:
Length x Width: 762mm x 762mm (30inches x 30 inches)
508mm x 508mm (20inches x 20 inches)
Thickness: 3.2mm—22mm ( 1/8 – 7/8 inch)
Printing brake pads: 65.3x46.2x14.6mm
Frictional Properties(SAE J661):
Normal 0.50
Hot 0.49
400°F 0.50
Recommended Operating Range：
Max. Pressure, psi 300
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)
With over 25 years of experience, Guiyang Talfri Brakes Co., Ltd. is the first and only Chinese manufacturer of non-asbestos laminated friction materials. Backed by imported technology and a commitment to innovation, we serve global clients in over 75% export markets including the USA, Europe, Korea, Japan , Singapore and Australia.
ISO 9001:2015 & IATF 16949:2016 certified
DNV & CCS quality type approved
Fully compliant with SAE-J661 & asbestos-free standards
Traceable production with inspection reports, CoC, and performance tests available
Over 6% of annual revenue invested in R&D
In-house lab with full friction material testing capabilities
Holder of multiple patents for high-performance composite formulations
1.What is your terms of packing?
Generally, we pack our brake pads/brake lining rolls in wooden boxes/carton with pallet , also accept to design customers' requirements
2. What is your terms of payment?
T/T 30% as deposit, and 70% before loading . We'll show you the photos of the products and packages before you pay the balance. Also, we accept flexible safe payment term, T/T, ALIPAL, PAYPAL etc.
3. What is your terms of delivery?
Normally EXW, FOB, also CNF, CIF
4. How about your delivery time?
About 40days - 55 days , Generally, if require woven brake lining, there are mostly stock.
5. Can you produce according to the samples?
Yes, we can design and produce by your samples or technical drawings.
6. What is your sample policy?
We can supply the sample , but the customers have to pay the sample the courier cost. So before placing sample order, please ask us for confirmation in advance.
7: How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit ;
2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
8: What's your best convenient contact way:
We check and reply email everyday, 24 hours phone service, use whatsapp/wechat everyday.
