brake disc
0.40-0.55
650F(340℃)
600F(315℃)
| Quantity: | |
|---|---|
Overview

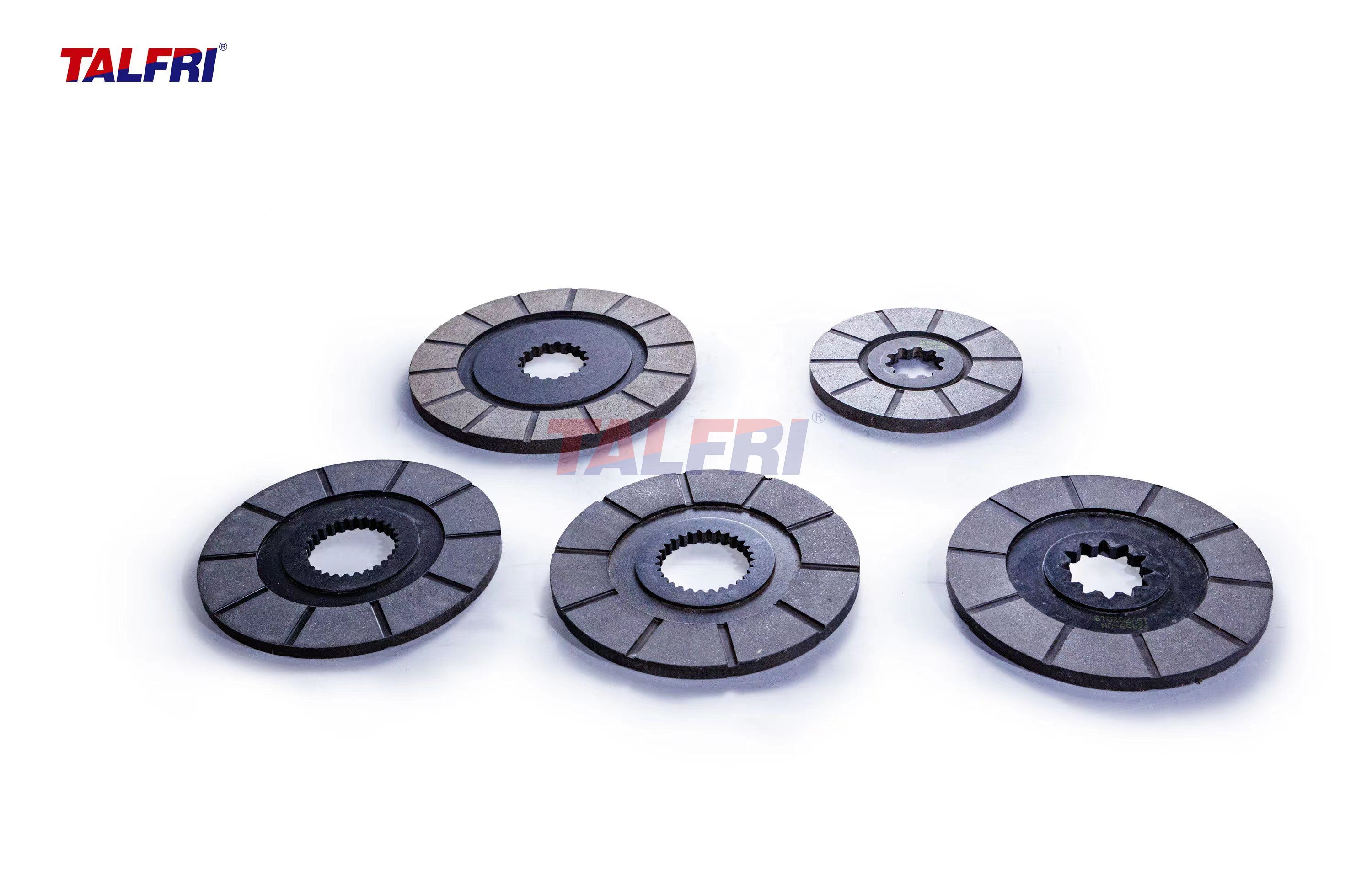

The brake discs have been used in Case machineries, it has the good quality and excellent performance, here introduce the material of brake disc.
TRH3020 is a rigid molded Non Asbestos Brake Sheet of medium and high frictional coefficient. The flat sheet exhibits excellent resistance to heat and compression and outstanding stability in applications. TRH3020 sheet can be processed into segments or rings and other shapes by tooling or machining.
Dimension
Length x Width: 762mm x 762mm (30inches x 30 inches)
Thickness：3.2mm—25.4mm ( 1/8 – 1inch)
Brake disc sizes
10 inner teeth 165.1x88.9x12.8mm
24 inner teeth 203.2x127x13.5mm
24 inner teeth 177.8x101.6x14.3mm
12 inner teeth 165.5x88.1x12.8mm
12 inner teeth 177.8x101.6x11.5mm
29 inner teeth 203.2x127x9.4mm
19 inner teeth 203.2x127x11.1mm
22 inner teeth 229.4x152.4x12.8mm
17 inner teeth 228.6x152.4x12.8mm
10 inner teeth 165.1x88.9x12.7mm
12 inner teeth 203.2x127x11.1mm
Can be customized follow customers' drawing or requirements.
Frictional Properties
Normal 0.50
Hot 0.48
400°F 0.50
With over 25 years of production experience, Guiyang Talfri Brakes Co., Ltd. is the first and only Chinese manufacturer of non-asbestos laminated friction materials. Backed by imported technology and a commitment to innovation, we serve global clients in over 75% export markets including the USA, Europe, Korea, Germany, New Zealand and Australia.
ISO 9001:2015 & IATF 16949:2016 certified
DNV & CCS quality type approved
Fully compliant with SAE-J661 & asbestos-free standards
Traceable production with inspection reports, CoC, and performance tests available
Over 6% of annual revenue invested in R&D
In-house lab with full friction material testing capabilities
Holder of multiple patents for high-performance composite formulations
24 -hour online
Actively analyze and identify the reasons
Spare parts are dispatched in a timely manner
Actively solve problems
Follow-up visit after service completion
Regular customer satisfaction surveys
Build long-term customer trust and enhance brand loyalty

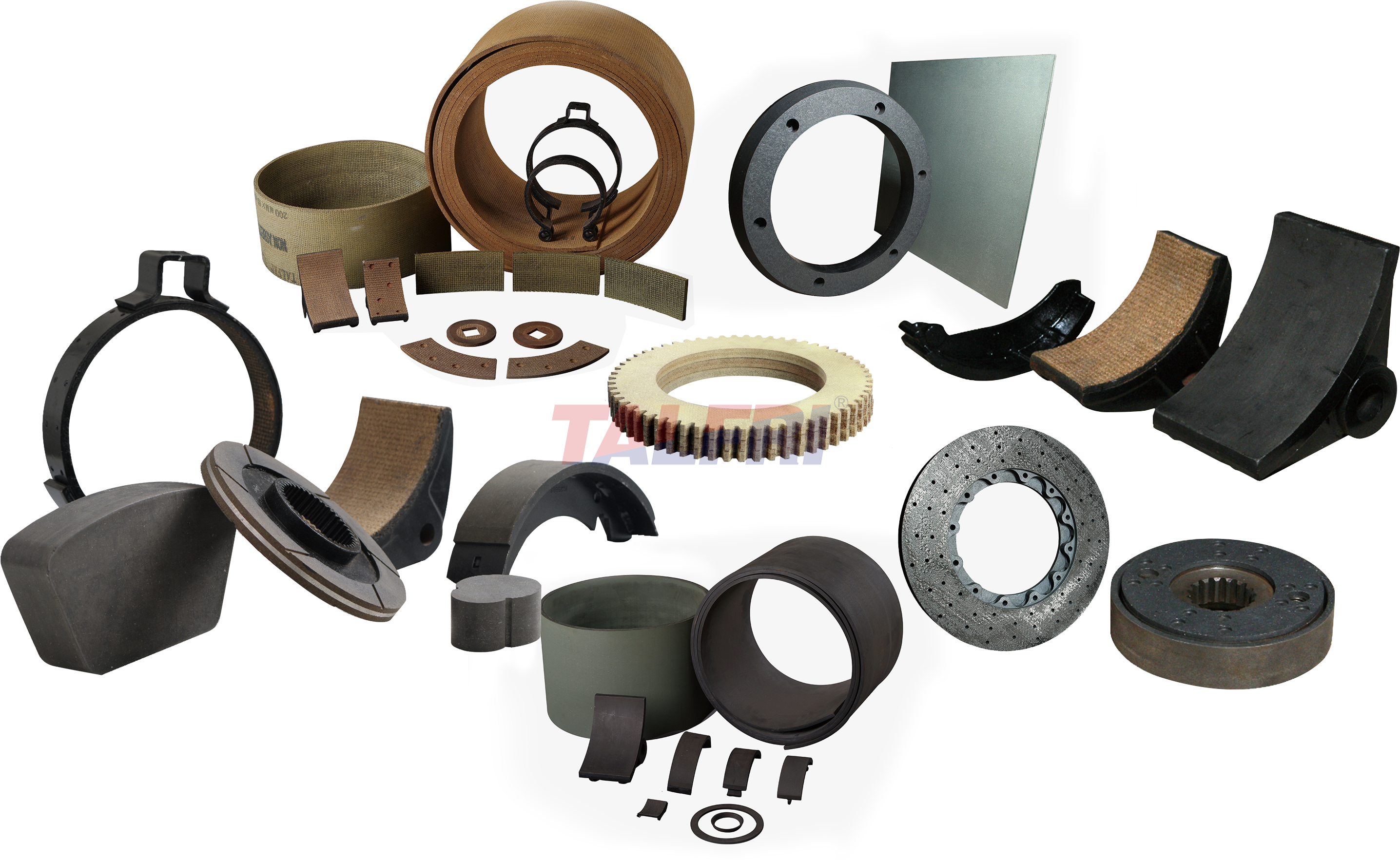

Rubber brake lining rolls
Cluth kits
Carbob ceramic brake rotors
Bonding and relining
Looking for a long-lifespan, non-asbestos, and high-precision gear disc plate supplier?
Talfri offers the performance, safety, and reliability brake disc pads that meet the global industries demand, can provide more suible material to end users also can follow customers' requirements to develop new material.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
Overview
The brake discs have been used in Case machineries, it has the good quality and excellent performance, here introduce the material of brake disc.
TRH3020 is a rigid molded Non Asbestos Brake Sheet of medium and high frictional coefficient. The flat sheet exhibits excellent resistance to heat and compression and outstanding stability in applications. TRH3020 sheet can be processed into segments or rings and other shapes by tooling or machining.
Dimension
Length x Width: 762mm x 762mm (30inches x 30 inches)
Thickness：3.2mm—25.4mm ( 1/8 – 1inch)
Brake disc sizes
10 inner teeth 165.1x88.9x12.8mm
24 inner teeth 203.2x127x13.5mm
24 inner teeth 177.8x101.6x14.3mm
12 inner teeth 165.5x88.1x12.8mm
12 inner teeth 177.8x101.6x11.5mm
29 inner teeth 203.2x127x9.4mm
19 inner teeth 203.2x127x11.1mm
22 inner teeth 229.4x152.4x12.8mm
17 inner teeth 228.6x152.4x12.8mm
10 inner teeth 165.1x88.9x12.7mm
12 inner teeth 203.2x127x11.1mm
Can be customized follow customers' drawing or requirements.
Frictional Properties
Normal 0.50
Hot 0.48
400°F 0.50
With over 25 years of production experience, Guiyang Talfri Brakes Co., Ltd. is the first and only Chinese manufacturer of non-asbestos laminated friction materials. Backed by imported technology and a commitment to innovation, we serve global clients in over 75% export markets including the USA, Europe, Korea, Germany, New Zealand and Australia.
ISO 9001:2015 & IATF 16949:2016 certified
DNV & CCS quality type approved
Fully compliant with SAE-J661 & asbestos-free standards
Traceable production with inspection reports, CoC, and performance tests available
Over 6% of annual revenue invested in R&D
In-house lab with full friction material testing capabilities
Holder of multiple patents for high-performance composite formulations
24 -hour online
Actively analyze and identify the reasons
Spare parts are dispatched in a timely manner
Actively solve problems
Follow-up visit after service completion
Regular customer satisfaction surveys
Build long-term customer trust and enhance brand loyalty
Rubber brake lining rolls
Cluth kits
Carbob ceramic brake rotors
Bonding and relining
Looking for a long-lifespan, non-asbestos, and high-precision gear disc plate supplier?
Talfri offers the performance, safety, and reliability brake disc pads that meet the global industries demand, can provide more suible material to end users also can follow customers' requirements to develop new material.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
