TRH3075
TALFRI
| Quantity: | |
|---|---|
Overview

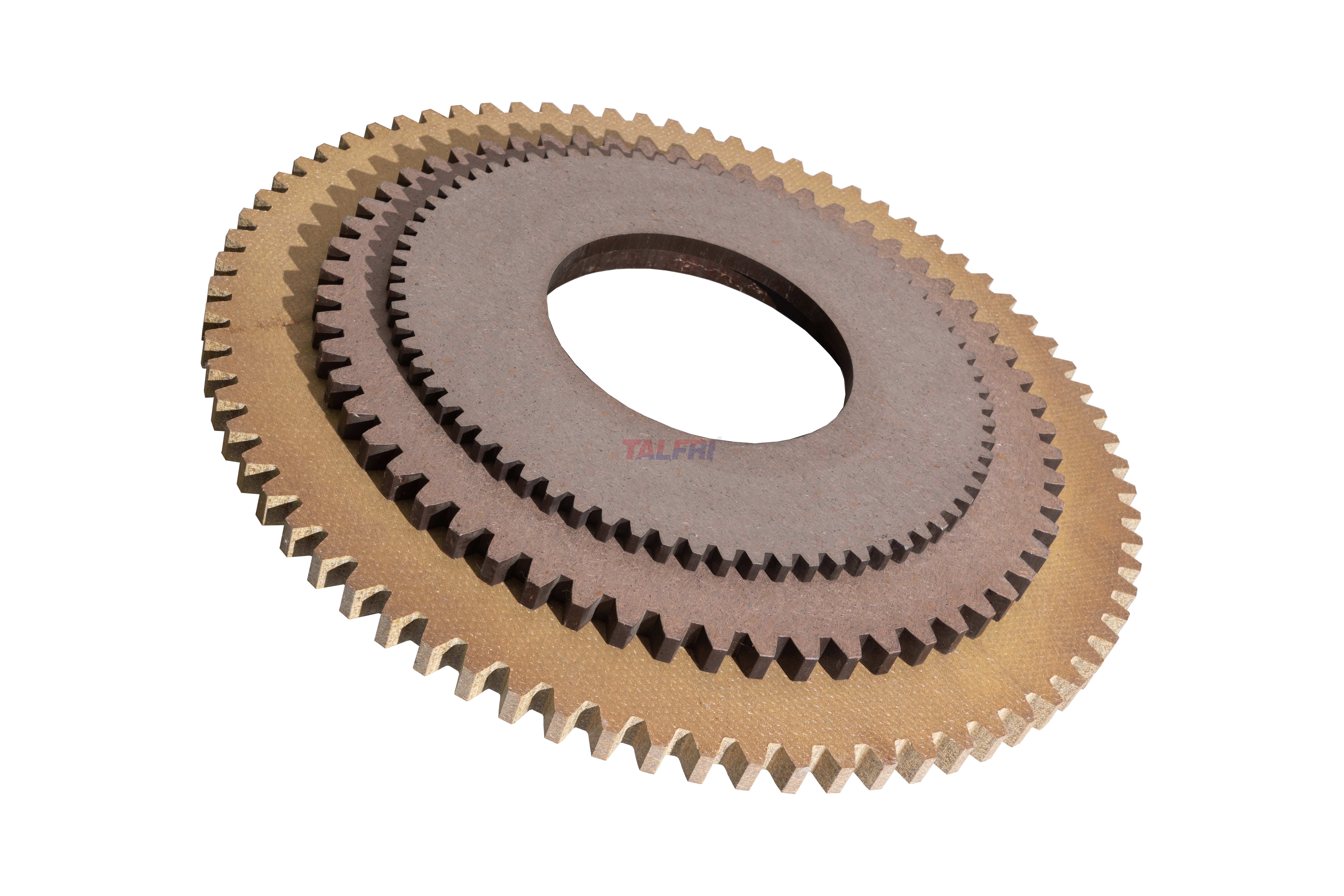

TRH3075 is a Non-Asbestos, Non-Metal rigid moulded product grey in colour utilising kevlar fibers. TRH3075 offers excellent thermal resistance, compression and exhibits outstanding stability under heavy loads, at the same time maintaining a high resistance to wear. TRH3075 can be molded into wide range of shapes and sizes to satisfy virtually all industrial applications.
✅ Ultra-Durable Construction: Molded from Kevlar, Basalt fiber, and resin.
✅ High Wear & Compression Resistance: Withstands extreme mechanical and thermal loads
✅ Customizable Gear Options: Available in 51-teeth (8") , 63-teeth(10"), 72-teeth (10"), 59-teeth(14") specifications
✅ Lead-Free, Asbestos-Free, Environmentally Safe
✅ Precision-Machinable for tailored industrial clutch/brake configurations
✅ Excellent braking force for high friction coefficient
Applications
TRH3075 has been specifically designed for industrial applications, especially gear tooth facings, mechanical drivers and any application requiring a high strength, high friction and low wear material.
Gear teeth facing only can be produced by mould.

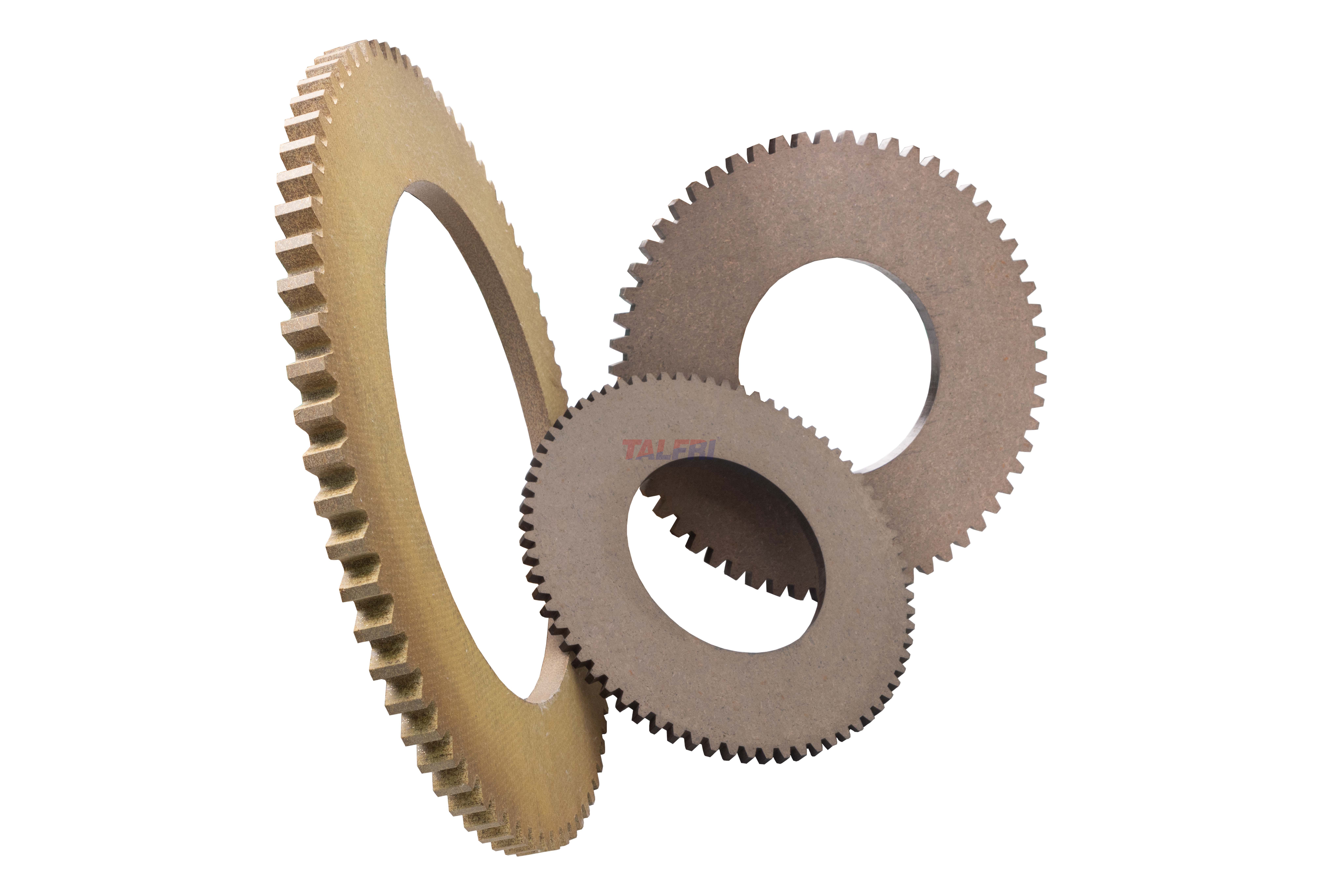

Size
51teeth 8inch 222x141x11mm
63teeth 10inch 273x141x11mm
72teeth 11inch 311x159x11mm
75teeth 14inch 384x178x16mm
Can follow customers' requirements or drawings to make it.
Frictional Properties(SAE J661)
Normal 0.48
Hot 0.47
400°F 0.48
Recommended Operating Range
Max. Pressure, psi 300
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)
With over 25 years of experience, Guiyang Talfri Brakes Co., Ltd. is the first and only Chinese manufacturer of non-asbestos laminated friction materials. Backed by imported technology and a commitment to innovation, we serve global clients in over 75% export markets including the USA, Europe, Korea, Japan, Turkey and Australia.
ISO 9001:2015 & IATF 16949:2016 certified
DNV & CCS quality type approved
Fully compliant with SAE-J661 & asbestos-free standards
Traceable production with inspection reports, CoC, and performance tests available
Over 6% of annual revenue invested in R&D
In-house lab with full friction material testing capabilities
Holder of multiple patents for high-performance composite formulations
Holder of multiple technical patents
Products range
✦ Woven brake lining roll / sheet
✦ Oil rig brake block
✦ Extruded brake lining roll
✦ Molded friction sheet / gear teeth ring
✦ Laminated friction sheet / gear teeth facing
✦ PTO Gear teeth facing
✦ Industrial friction products
✦ Carbon ceramic brake rotor ( car modification )
Other customized friction products are available.
Looking for a long-lifespan, non-asbestos, and high-precision gear disc plate supplier?
TRH3075 by Talfri offers the performance, safety, and reliability that global industries demand, we also can follow your requirement to develop new formula or technical to meet your application.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
