TRH3030
TALFRI
| Quantity: | |
|---|---|

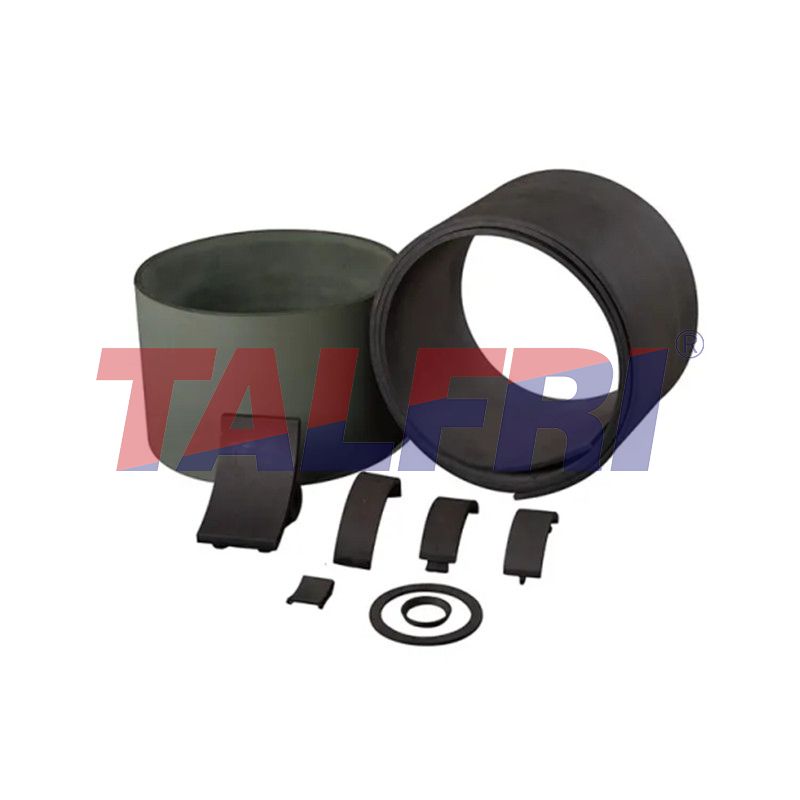

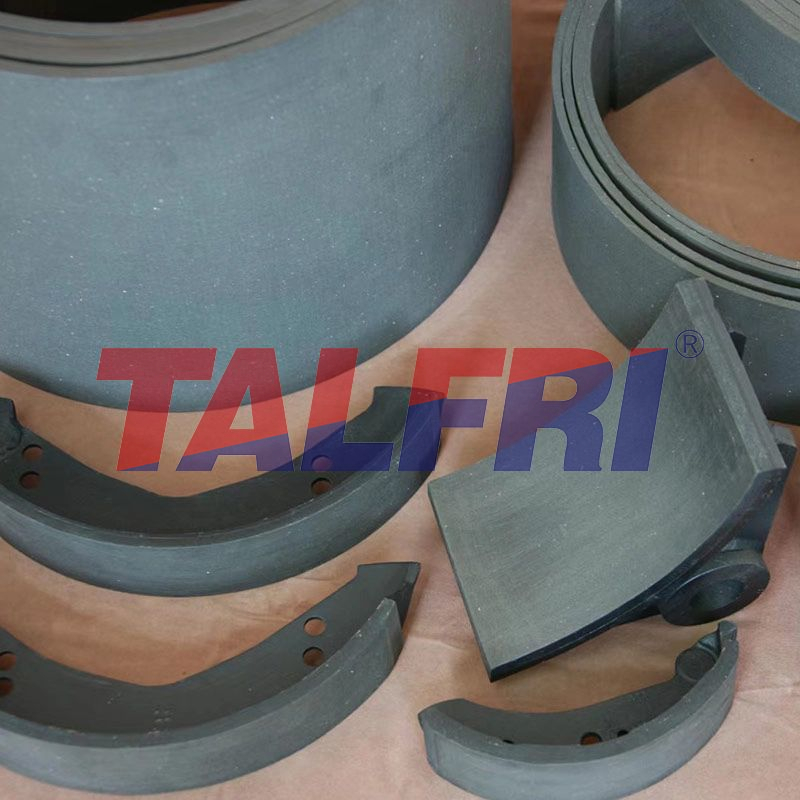

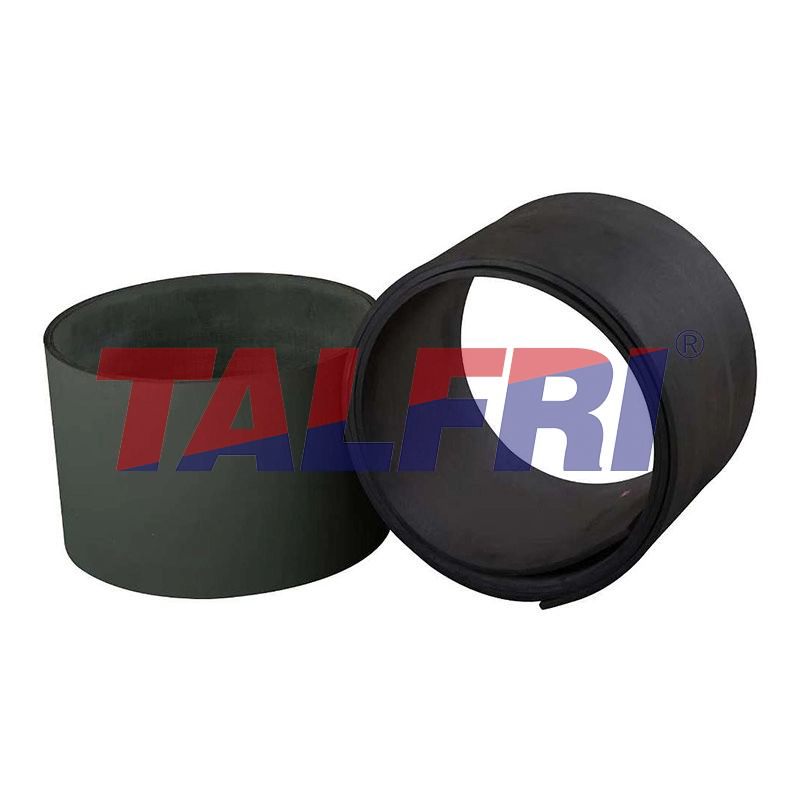

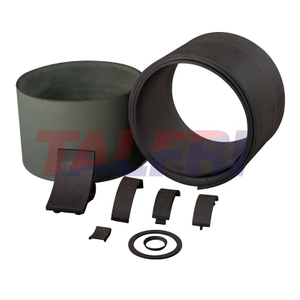

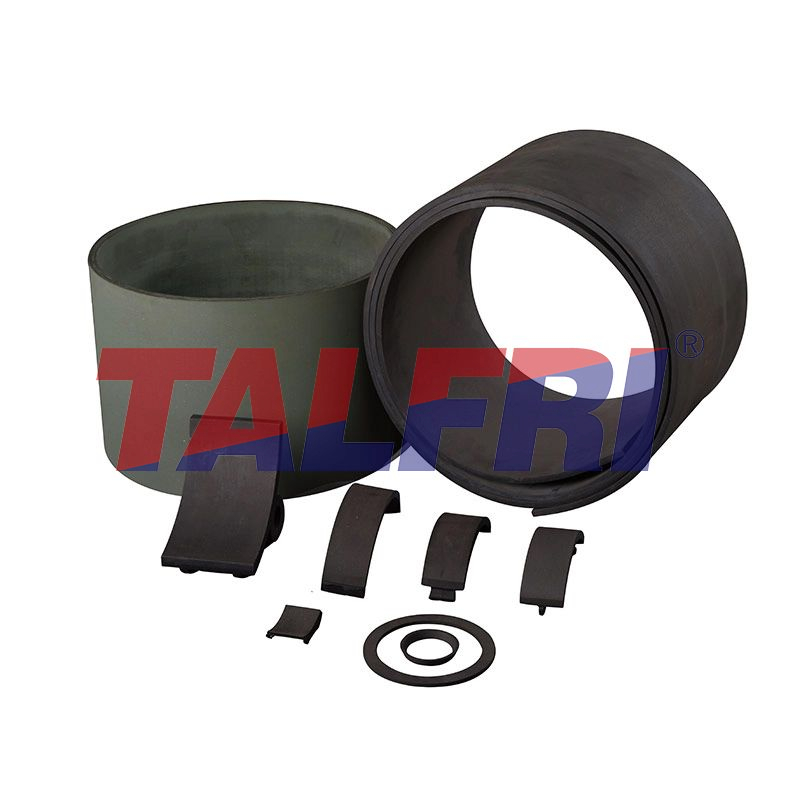

Non-Asbestos Moulded Brake Lining Roll: TRH3030
Overview:
Flexible molded lining TRH3030 is a semi-flexible and semi-cured Non Asbestos Brake Lining of medium and high friction coefficient. The brake lining is extruded from a mixture of various materials and rubber. The semi-flexible material will become rigid after full curing process. TRH3030 exhibits excellent resistance to heat exceedingly good frictional stability.
Applications：
TRH3030 is suitable for light and medium duty machinery, such as elevator, air tube clutch, agricultural machinery, centrifuge, fork lift and overhead crane, etc.. The material can be bonded on the brake band with special glue and becomes rigid after full curing process.
Dimension：
Width: Max 330mm ( 13 inches )
Thickness：3.2mm—15mm ( 1/8 – 3/5 inch)
Length：5Mtr
Frictional Properties(Test procedure: SAE-J661):
Normal 0.42
Hot 0.38
400°F 0.43
Recommended Operating Range：
Max. Pressure, psi 250
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)
With over 25 years of production experiences, Guiyang Talfri Brakes Co., Ltd. is the first and only Chinese manufacturer of non-asbestos laminated friction materials. Backed by imported technology and a commitment to innovation, we serve global clients in over 75% export markets including the USA, Europe, Korea, Thiland, Singapore and Australia.
ISO 9001:2015 & IATF 16949:2016 certified
DNV & CCS quality type approved
Fully compliant with SAE-J661 & asbestos-free standards
Traceable production with inspection reports, CoC, and performance tests available
Over 6% of annual revenue invested in R&D
In-house lab with full friction material testing capabilities
Holder of multiple patents for high-performance composite formulations
Holder of multiple invention patents
Have a strong and professional technical team
Looking for a long-lifespan, non-asbestos, and high-quality brake lining roll supplier?
TRH3030 by Talfri offers the performance, safety, and reliability that global industries demand, espencially for mooring winch or some bonding services.
Contact us today to request samples, technical data sheets, or custom solutions tailored to your equipment needs.
