TRH3031
TALFRI
| Quantity: | |
|---|---|
Overview
TRH3031 is a rigid molded product grey in colour utilising Kevlar fibers and a high percentage of brass chippings with steel plate. TRH3031 offers excellent thermal resistance, compression and exhibits outstanding stability under heavy loads, at the same time maintaining a high resistance to wear. TRH3031 is manufactured in sheets, segments, rings and many special shapes by either machining or moulding.
Applications
TRH3031 has been specifically designed for use on medium to heavy duty industrial brake/clutch applications, especially gear tooth facings, mechanical drivers and any application requiring a high strength, high friction and low wear material. TRH3031 also can be used in hydraulic oil, but the friction coefficient will be much lower than it is used in dry conditions.
Gear teeth facing only can be produced by mould.
Dimension
Length x Width: 762mm x 762mm (30inches x 30 inches)
508mm x 508mm (20inches x 20 inches)
Thickness: 3.2mm—22mm ( 1/8 – 7/8 inch)

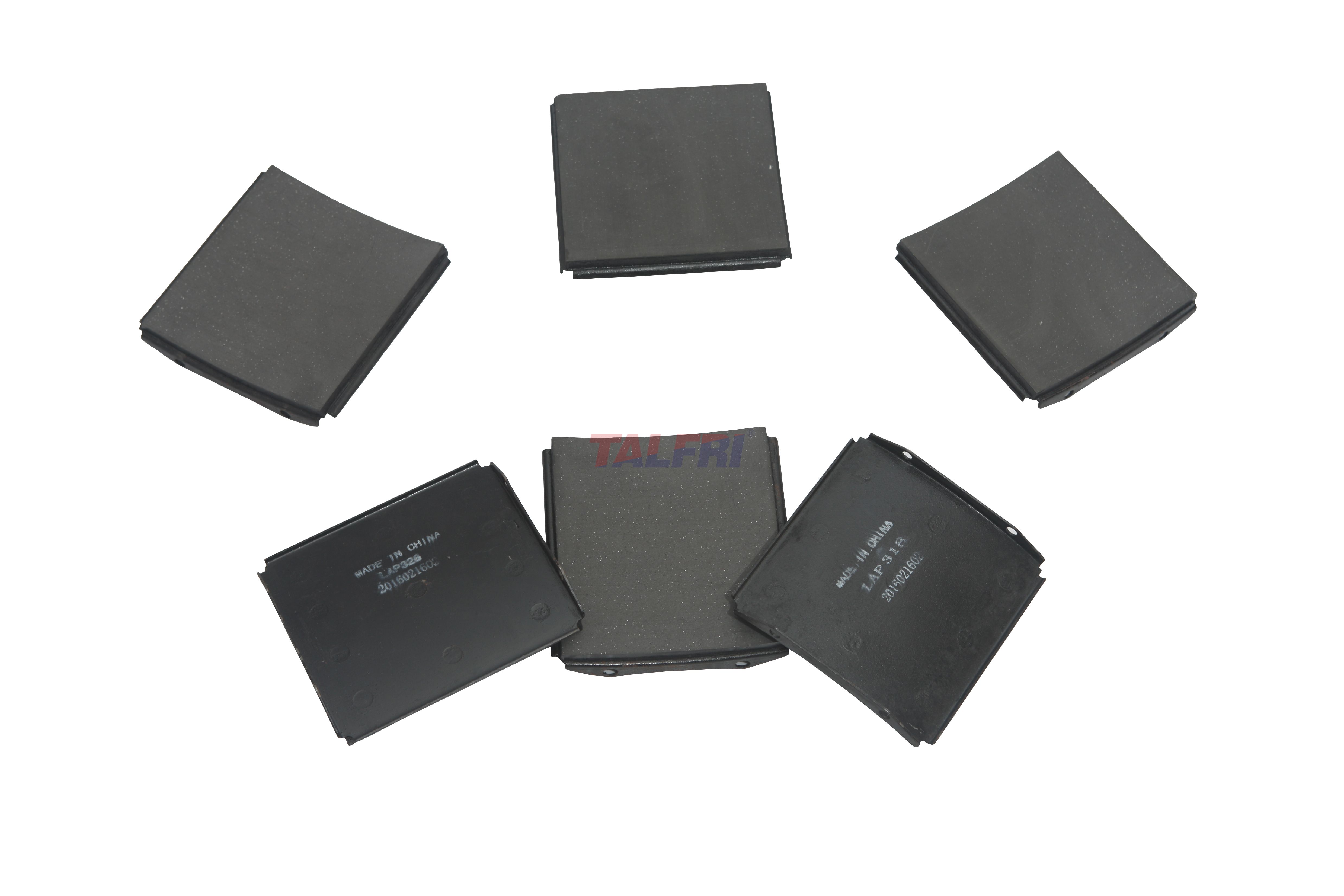

Airflex pneumatic clutch brake pads
CB06015 CB06016
CB08015 CB08016
CB10015 CB10016
CB20015 CB20016
CB22015 CB22016
CB26015 CB26016
CB40015 CB40016
Frictional Properties(SAE J661)
Normal 0.50
Hot 0.49
400°F 0.50
Recommended Operating Range
Max. Pressure, psi 300
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)
Trading Capacity
International Commercial Terms (Incoterms): FOB, EXW, CFR, CIF, offering flexible options to suit your trading needs
Terms of Payment: LC, T/T, ALIPAY, PAYPAL, Wechat,tailored for secure and convenient transactions
Average Lead Time: Peak Season Lead Time: two months, Off Season Lead Time: within 20 workdays, ensuring timely delivery throughout the year
Number of Foreign Trading Staff: 4~10 People, a dedicated team ensuring smooth international operations
Export Percentage: 70%~80%, a testament to our significant presence in international trade
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe, showcasing our widespread global reach
1.Q: How can I get the samples?
A: If you wish to obtain samples for testing, you are required to cover the transportation costs and the sample fees. However, upon placing an order, these sample costs can be reimbursed. Alternatively, you might be eligible for a complimentary Blank Sample.
2. Q: How to order?
A: Kindly send us your purchase order via Email or social media like Wechat/Whatapp, or request a Proforma invoice from us. For a seamless order process, please provide the following information.
1) Product information - Quantity, Specification (Size, Material, Technology, and Applicaitons, etc.)
2) Desired delivery timeline
3) Shipping information - Company name, Street address, Phone & Fax number, Destination sea port.
4) Contact details of any designated forwarder in China.
3. When can you get the price?
Typically, we provide quotes within 24 hours of receiving your inquiry. If urgency is a factor, please reach out via phone or emphasize it in your email for prioritized attention. Detailed inquiries enable us to offer more precise pricing.
4. How can you get a sample to check our quality?
Following price confirmation, samples are available upon request to ascertain our quality standards.
Should you require a blank sample to evaluate design or quality, we offer it free of charge, with only the express freight to be covered by you.
5. Can we do the design or drawing for you?
Yes, certainly. Our expert team, rich in experience with brake pads or friction block and manufacturing, is at your service. Share your ideas or applications with us, and we'll recommend the suitable material and make the drawing to you for approval.
