84415744
| Quantity: | |
|---|---|
Overview
The brake discs have been used in Case machineries, it has the good quality and excellent performance, here introduce the material of brake disc.

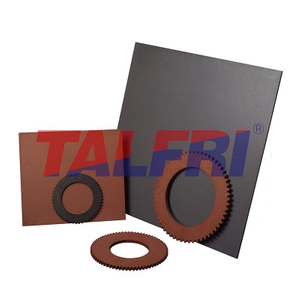

TRH3020 is a rigid molded Non Asbestos Brake Sheet of medium and high frictional coefficient. The flat sheet exhibits excellent resistance to heat and compression and outstanding stability in applications. TRH3020 sheet can be processed into segments or rings and other shapes by tooling or machining or mold
✅ Ultra-Durable Construction: molded by resin, glass fiber, and iron powder, then grinding, show the stable quality and excellent performance.
✅ High Wear Resistance: Withstands extreme mechanical and thermal loads
✅ Customizable Options: Available in 10-teeth ,12-teeth, 19-teeth and 24-teeth etc. specifications
✅ Lead-Free, Asbestos-Free, Environmentally Safe
✅ Precision-Machinable for tailored industrial clutch/brake configurations
✅ High coefficient: 0.45-0.55
Dimension：
Length x Width: 762mm x 762mm (30inches x 30 inches)
Thickness：3.2mm—25.4mm ( 1/8 – 1inch)
Frictional Properties:
Normal 0.50
Hot 0.48
400°F 0.50
Recommended Operating Range：
Max. Pressure, psi 280
Max. Rubbing Speed, ft/min 5000
Max. Intermittent Temperature 650°F (340°C)
Max. Continuous Temperature 600°F (315°C)

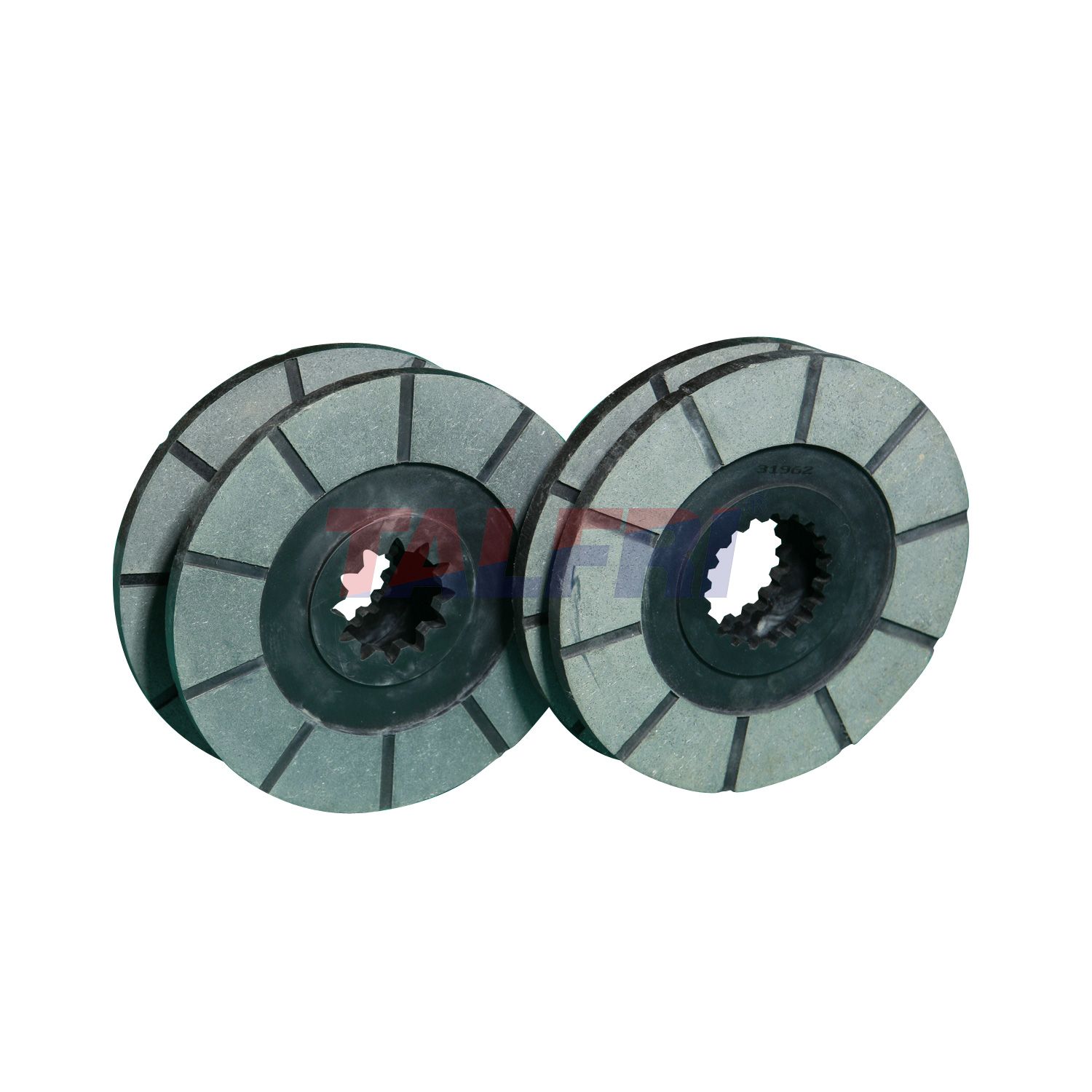

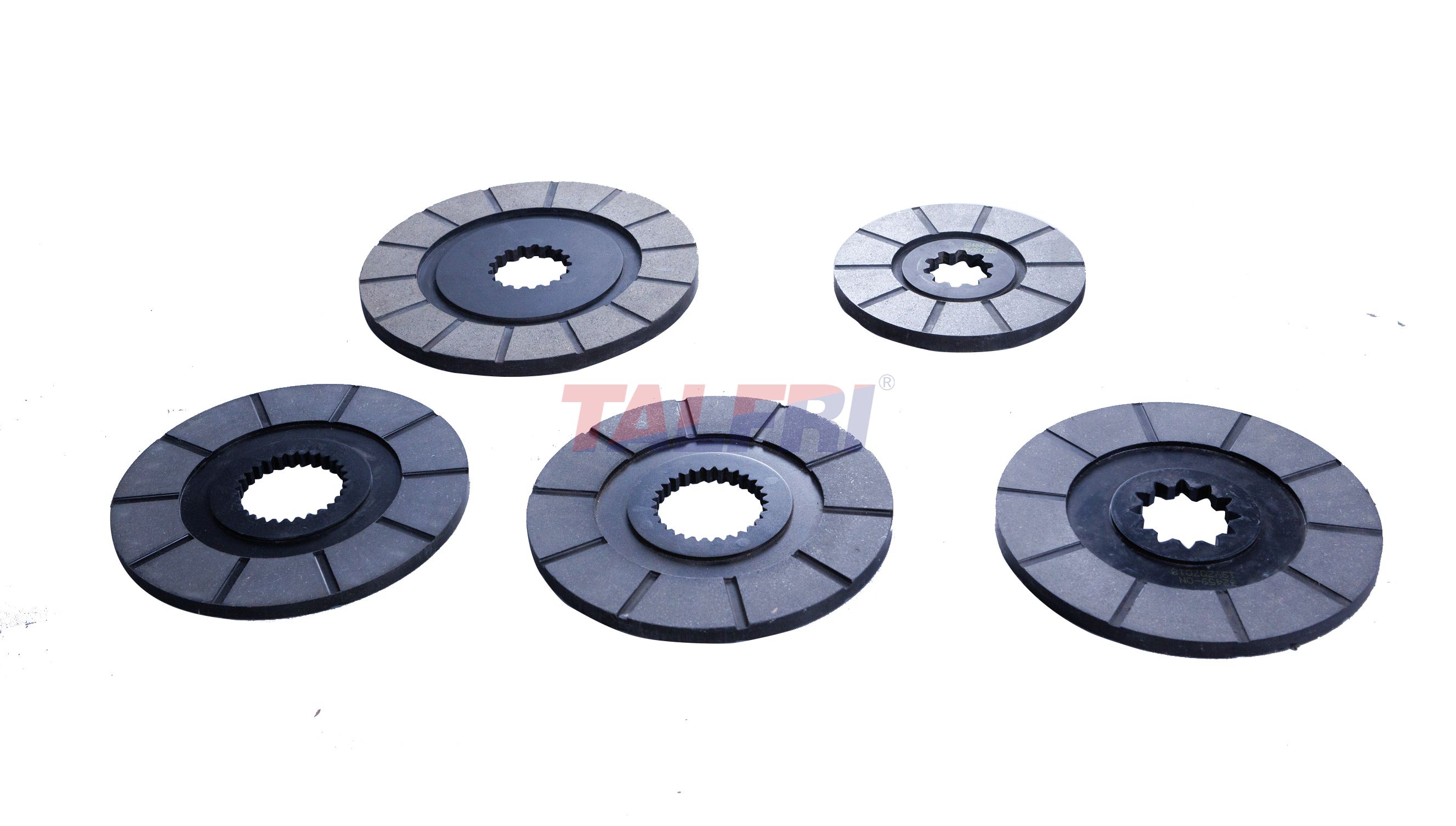

The size for brake disc 84415744:
Outside Diameter: 8"
Thickness: .439"
Major Inside Diameter: 2.512"
Minor Inside Diameter: 2.269"
Teeth: 19
TRH3020 inner gear tooth disc plates are widely adopted in:
Agricultural machinery
Tractor
Harvester
Ploughing machine

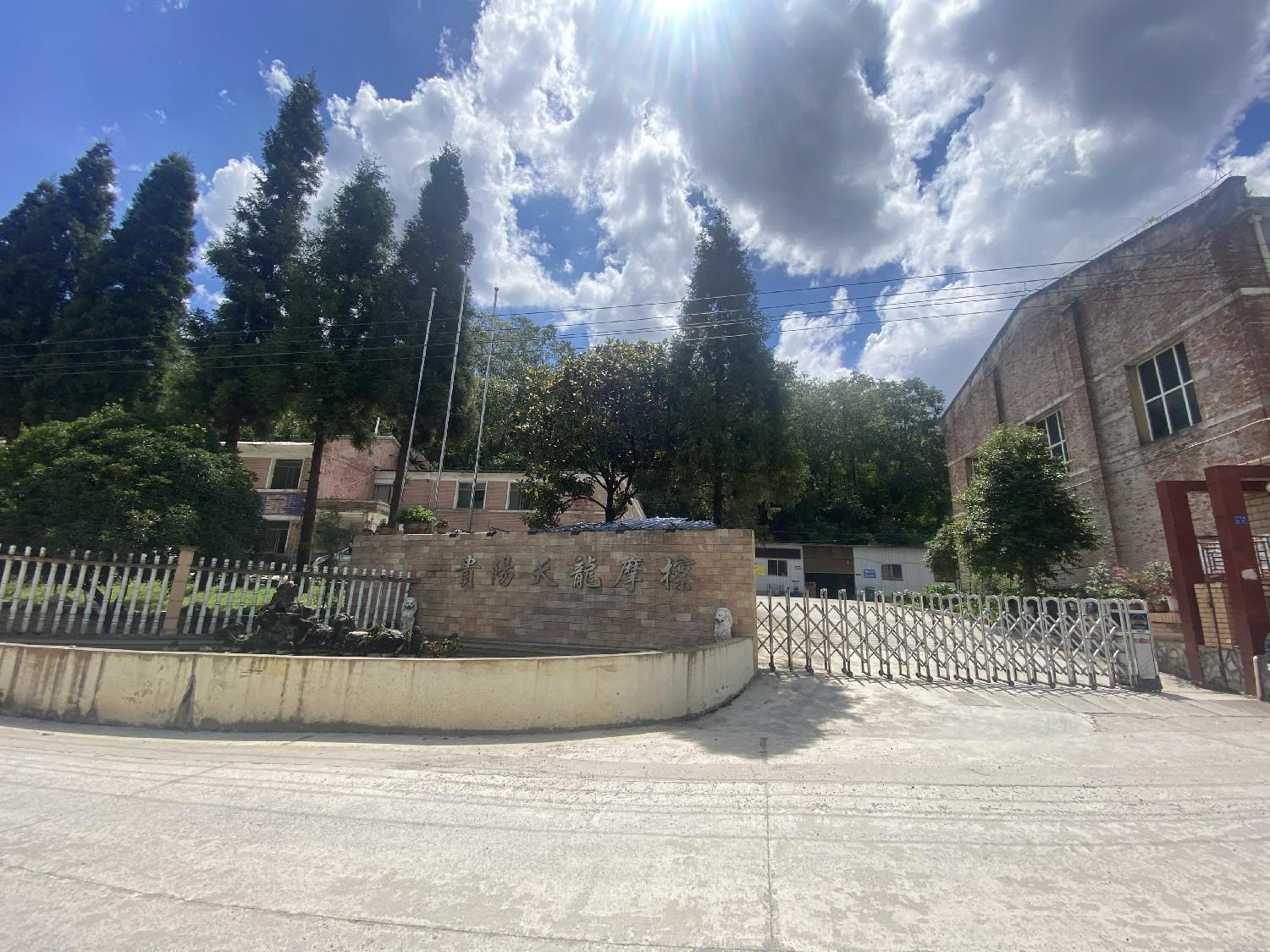

At Talfri Brake, our unwavering commitment to safety, comfort, and quality propels us to the forefront of the braking industry. As a global leader, we specialize in the cutting-edge design and production of high quality excellent performance brake linings. Our dedication to excellence guarantees that you receive only the highest quality products, tailored to enhance your applicaiton experience, over 75% export markets including the USA, Europe, Korea, Japan, New Zealand , South Africa, Singapore and Australia etc.
FAQ
1.Q: How can I get the samples?
A: If you wish to obtain samples for testing, you are required to cover the transportation costs and the sample fees. However, upon placing an order, these sample costs can be reimbursed. Alternatively, you might be eligible for a complimentary Blank Sample.
2. When can you get the price?
Typically, we provide quotes within 24 hours of receiving your inquiry. If urgency is a factor, please reach out via phone or emphasize it in your email for prioritized attention. Detailed inquiries enable us to offer more precise pricing.
3. How can you get a sample to check our quality?
Following price confirmation, samples are available upon request to ascertain our quality standards.
Should you require a blank sample to evaluate design or quality, we offer it free of charge, with only the express freight to be covered by you.
4. Can we do the design or drawing for you?
Yes, certainly. Our expert team, rich in experience with brake pads or friction block and manufacturing, is at your service. Share your ideas or applications with us, and we'll recommend the suitable material and make the drawing to you for approval.
