Excellent performance brake pads for printing machine of brake clutch system

Overview:

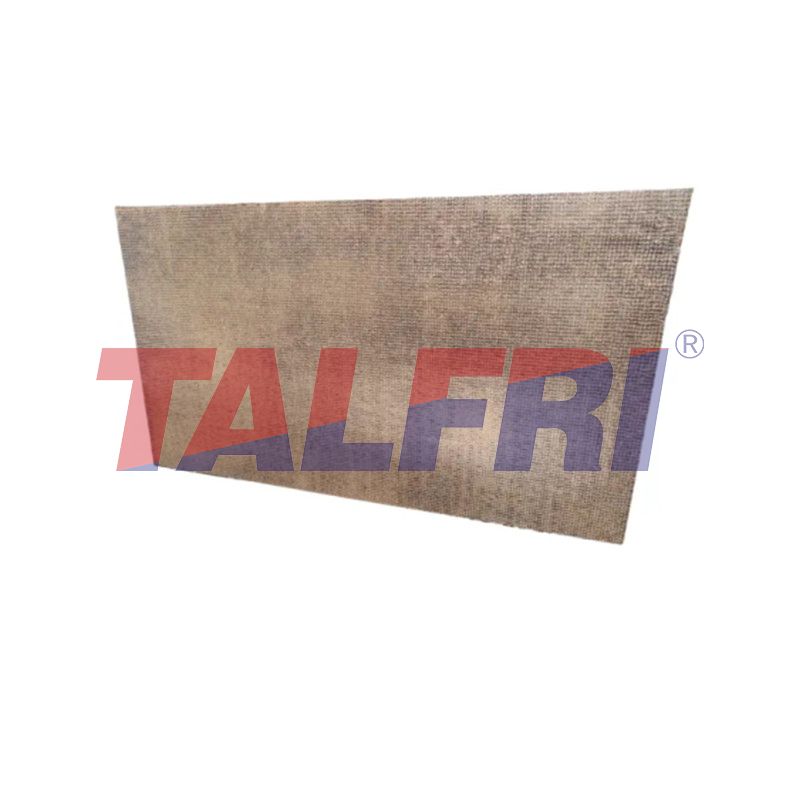

TL2003-S is a medium and/or heavy-duty friction material, which is a pressed flat sheet made of non-asbestos composite woven from yarns and brass wire. The dense material exhibits outstanding resistance to heat and compression under medium and/or high loads.

Application:

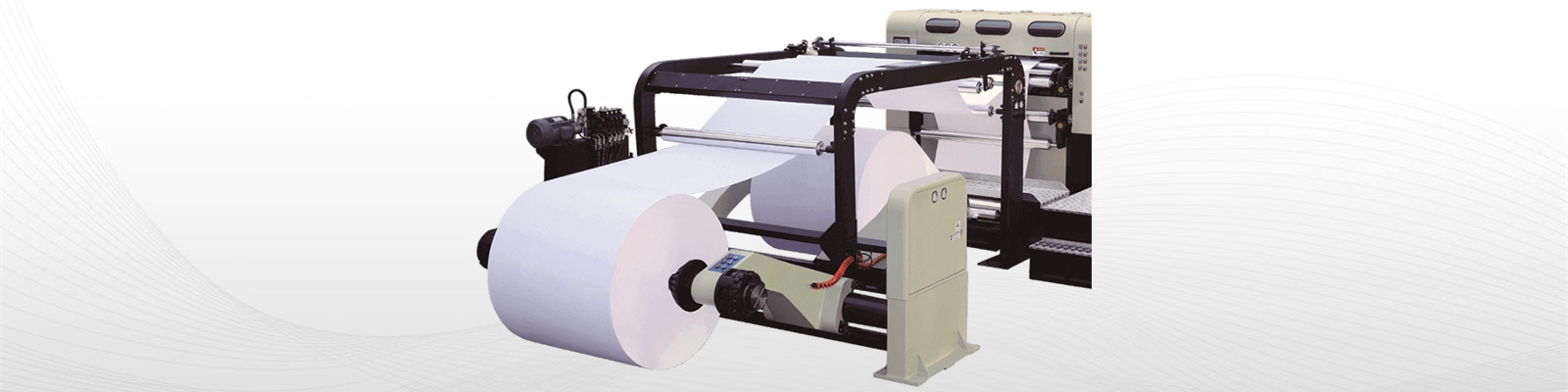

The applications of TL2003-S include all of types of industrial clutches, this product have been used well in printing machine.

Dimension:

Flat slab size:39″X27″（1000mmX685mm）

Thickness:0.125″- 0.5″(3.2mm—12.7mm)

For special specifications, pls contact us for information.

Frictional Properties:

Normal                       0.50

Hot                             0.49

400°F                         0.48

Recommended Operating Range：

Max. Pressure, psi                                           500

Max. Rubbing Speed, ft/min                          5000

Max. Intermittent Temperature                      650°F (340°C)

Max. Continuous Temperature                       600°F (315°C)
